FAN73912 - Half-Bridge Gate-Driver

onsemi

📥 Download Datasheet

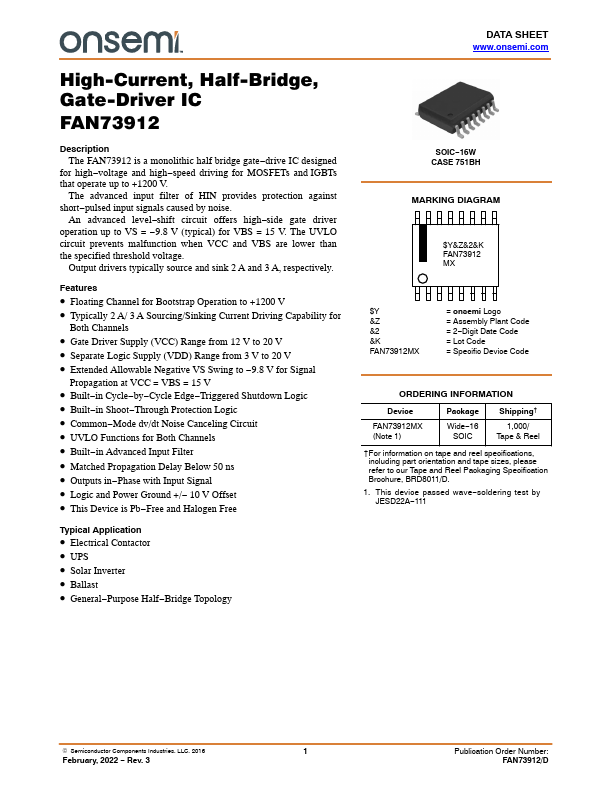

FAN73912 Datasheet Preview — Preview of FAN73912 PDF

Datasheet Details

Part number	FAN73912
Manufacturer	onsemi
File Size	3.64 MB
Description	Half-Bridge Gate-Driver
Datasheet	FAN73912-onsemi.pdf

FAN73912 Product details

Description

The FAN73912 is a monolithic half bridge gate drive IC designed for high voltage and high speed driving for MOSFETs and IGBTs that operate up to +1200 V. pulsed input signals caused by noise. shift circuit offers high side gate driver operation up to VS = 9.8 V (typical) for VBS = 15 V.

Features

Floating Channel for Bootstrap Operation to +1200 V.
Typically 2 A/ 3 A Sourcing/Sinking Current Driving Capability for Both Channels.
Gate Driver Supply (VCC) Range from 12 V to 20 V.
Separate Logic Supply (VDD) Range from 3 V to 20 V.
Extended Allowable Negative VS Swing to.
9.8 V for Signal Propagation at VCC = VBS = 15 V.
Built.
in Cycle.
by.
Cycle Edge.
Triggered Shutdown Logic.
Built.
