FAN7083-GF085 - High Side Gate Driver

FAN7083-GF085 Description

FAN7083-GF085 High Side Gate Driver with Reset FAN7083-GF085 High Side Gate Driver with Reset .
The FAN7083-GF085 is a high-side gate drive IC with reset input.

FAN7083-GF085 Features

* Qualified to AEC Q100
* Floating channel designed for bootstrap operation up fully operational to + 600V
* Tolerance to negative transient voltage on VS pin
* dv/dt immune.
* Gate drive supply range from 10V to 20V
* Under-voltage lockout
* C

FAN7083-GF085 Applications

* Diesel and gasoline injectors/valves
* MOSFET-and IGBT high side driver applications  SOIC-8 Ordering Information Device Package FAN7083M-GF085 FAN7083MX-GF085 X : Tape & Reel type SOIC-8 SOIC-8 Operating Temp. -40 C ~ 125 C -40 C ~ 125 C ©2012 Semiconductor Component

📥 Download Datasheet

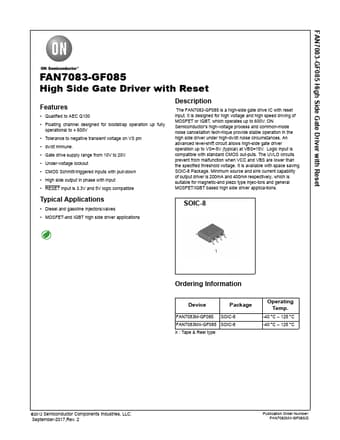

Preview of FAN7083-GF085 PDF
