FAN7311M, FAN7311 - LCD Backlight Inverter Driver

Name: FAN7311M
SKU: FAN7311M-1469880

Fairchild Semiconductor

📥 Download Datasheet

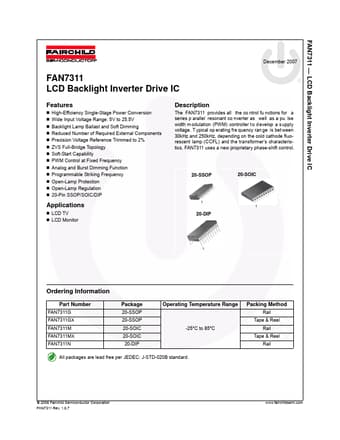

FAN7311M Datasheet Preview — This datasheet PDF includes multiple part numbers: FAN7311M, FAN7311. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	FAN7311M, FAN7311
Manufacturer	Fairchild Semiconductor
File Size	417.71 KB
Description	LCD Backlight Inverter Driver
Datasheet	FAN7311_FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: FAN7311M, FAN7311. Please refer to the document for exact specifications by model.

FAN7311M Product details

Description

The FAN7311 provides all the co ntrol fu nctions for a series p arallel resonant co nverter as well as a pu lse width m odulation (PWM) controller t o d evelop a s upply voltage.

Features

High-Efficiency Single-Stage Power Conversion.
Wide Input Voltage Range: 5V to 25.5V.
Backlight Lamp Ballast and Soft Dimming.
Reduced Number of Required External Components.
Precision Voltage Reference Trimmed to 2%.
ZVS Full-Bridge Topology.
Soft-Start Capability.
PWM Control at Fixed Frequency.
Analog and Burst Dimming Function.
Programmable Striking Frequency.
Open-Lamp Protection.
Op.
