EBRT3X45A - Excellent Schottky Barrier Rectifiers

Product Overview

Eris

Part number	EBRT3X45A
Manufacturer	Eris
File Size	332.95 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRT3X45A Datasheet

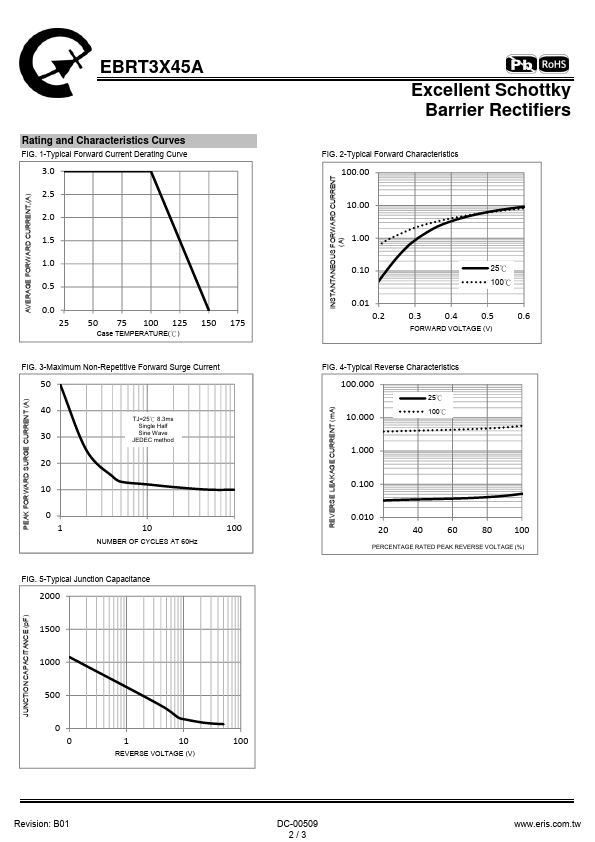

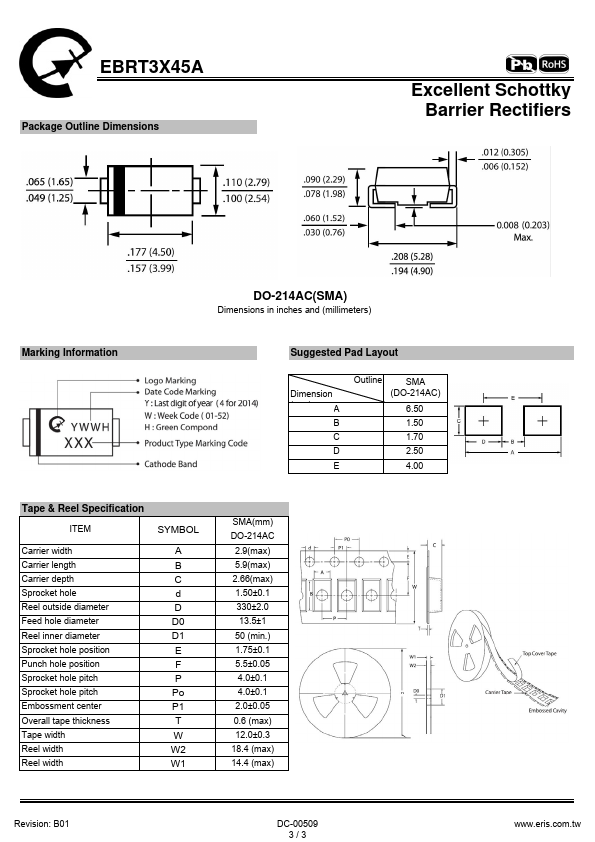

Additional preview pages of the EBRT3X45A datasheet.

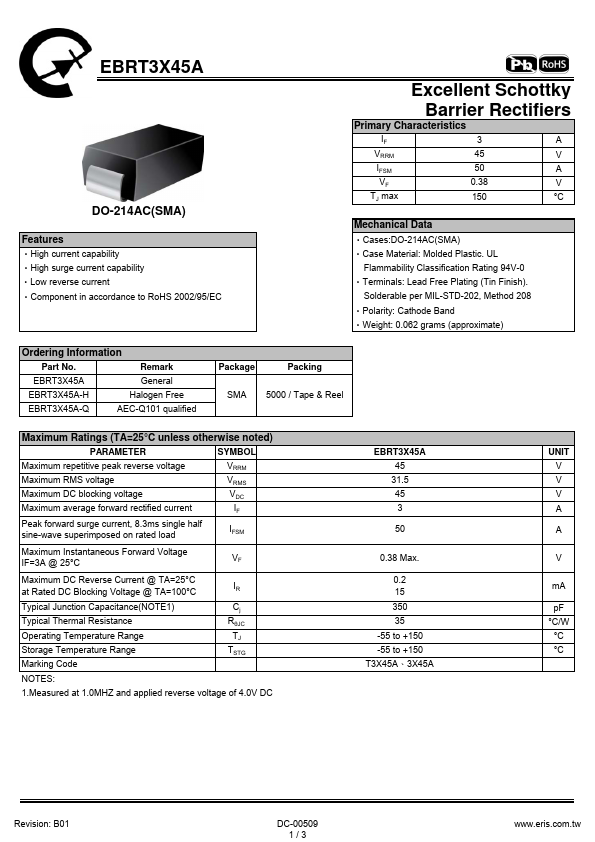

‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Excellent Schottky Barrier Rectifiers Primary Characteristics IF 3 A VRRM 45 V IFSM 50 A VF 0.38 V TJ max 150 °C Mechanical Data ‧Cases:DO-214AC(SMA) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.062 grams (appro.
