EBRT30L45C - Excellent Schottky Barrier Rectifiers

Product Overview

Eris

Part number	EBRT30L45C
Manufacturer	Eris
File Size	327.47 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRT30L45C Datasheet

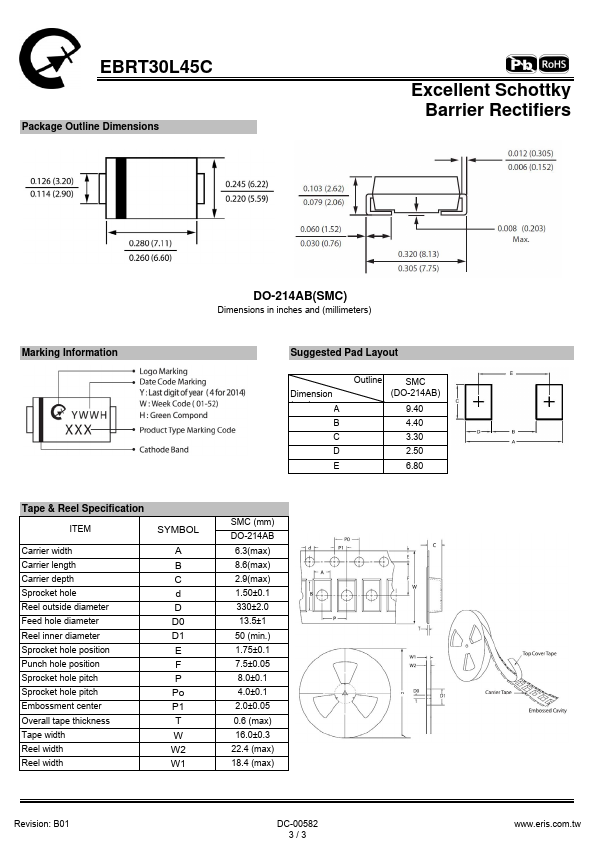

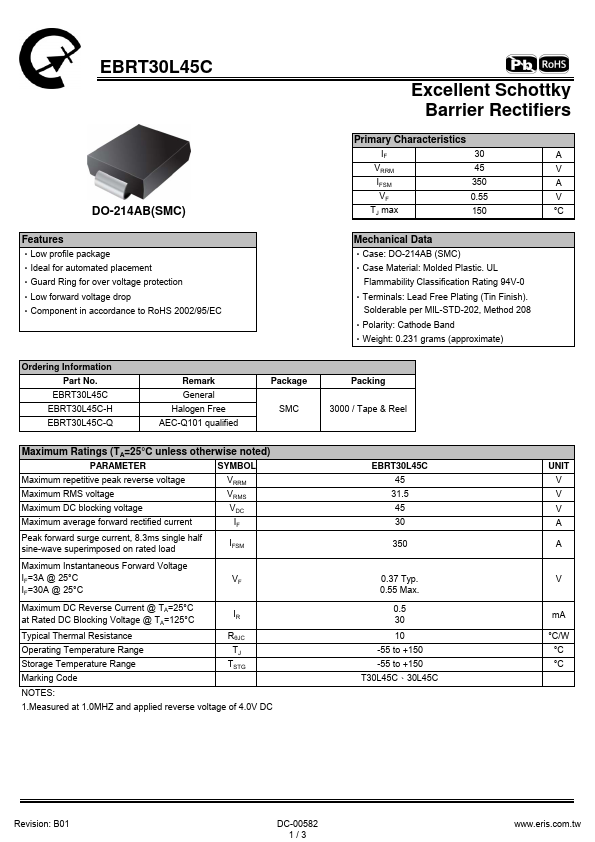

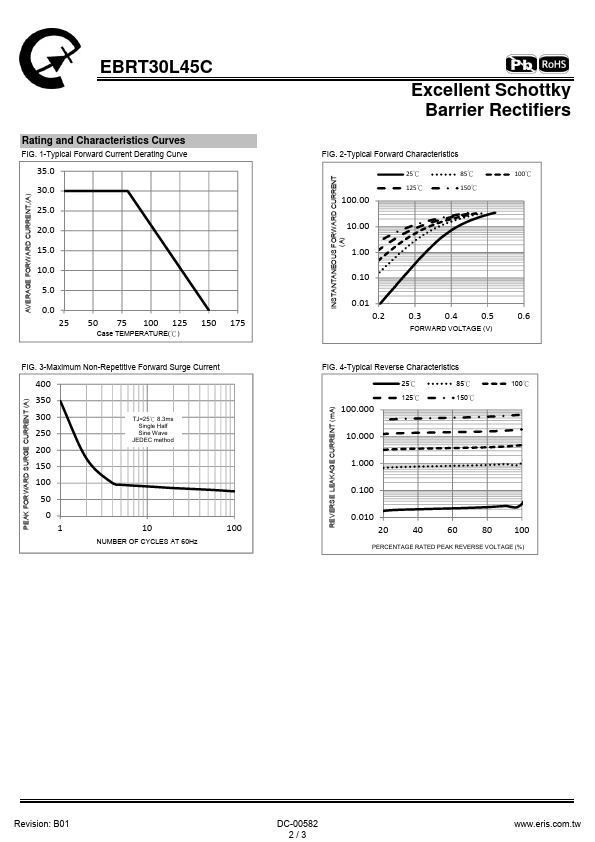

Additional preview pages of the EBRT30L45C datasheet.

‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Case: DO-214AB (SMC) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.231 grams (approximate) Ordering Information Part No. EBRT30L45C EBRT30L45C-H EBRT30L45C-Q Remark Gener.
