EBRT30M80CT - Excellent Schottky Barrier Rectifiers

Product Overview

Eris

Part number	EBRT30M80CT
Manufacturer	Eris
File Size	203.75 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRT30M80CT Datasheet

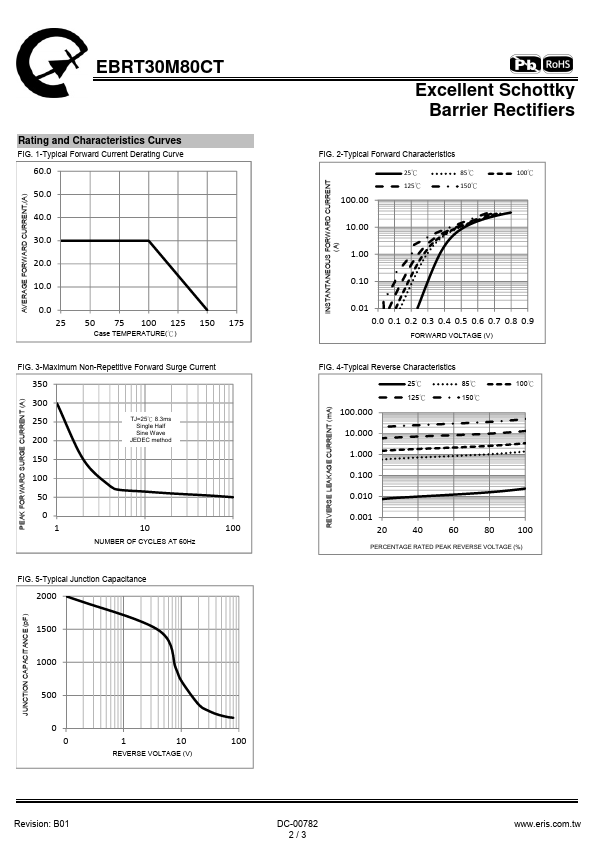

Additional preview pages of the EBRT30M80CT datasheet.

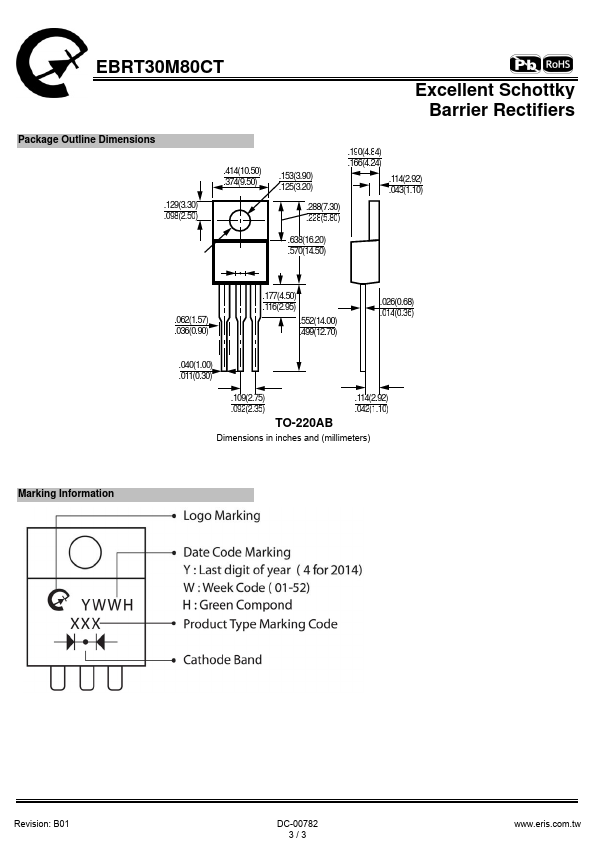

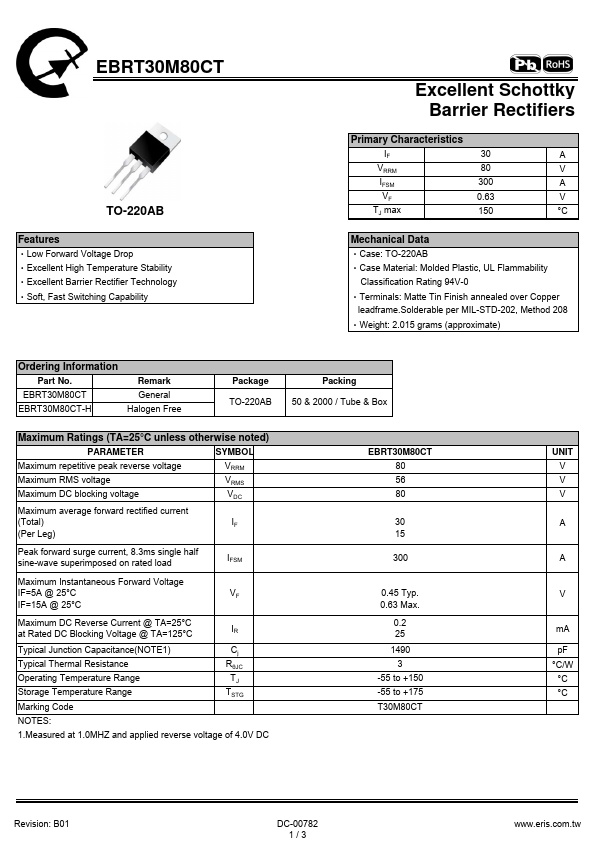

‧Low Forward Voltage Drop ‧Excellent High Temperature Stability ‧Excellent Barrier Rectifier Technology ‧Soft, Fast Switching Capability Excellent Schottky Barrier Rectifiers Primary Characteristics IF 30 A VRRM 80 V IFSM 300 A VF 0.63 V TJ max 150 °C Mechanical Data ‧Case: TO-220AB ‧Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals: Matte Tin Finish annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 ‧Weight: 2.015 grams (a.
