EBRT3X100B - Excellent Schottky Barrier Rectifiers

Product Overview

Eris

Part number	EBRT3X100B
Manufacturer	Eris
File Size	381.35 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRT3X100B Datasheet

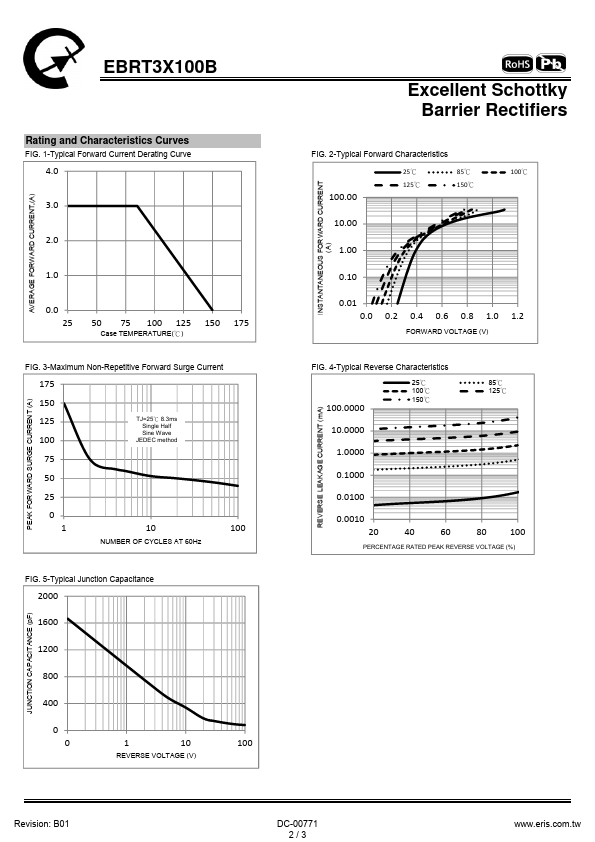

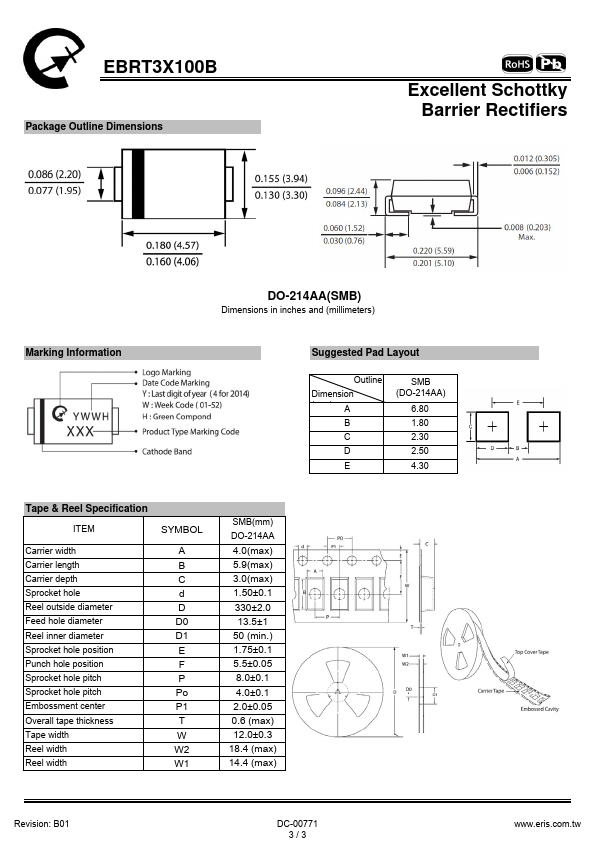

Additional preview pages of the EBRT3X100B datasheet.

‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Cases: DO-214AA(SMB) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.095 grams (approximate) Ordering Information Part No. Remark EBRT3X100B General EBRT3X100B-H Halogen Free EBRT3X100B-Q AEC-Q101 qualified.
