EBRP30L60CD2 - Excellent Schotthy Barrier Rectifiers

Product Overview

Eris

Part number	EBRP30L60CD2
Manufacturer	Eris
File Size	360.29 KB
Description	Excellent Schotthy Barrier Rectifiers
Datasheet	EBRP30L60CD2 Datasheet
Additional preview pages of the EBRP30L60CD2 datasheet.

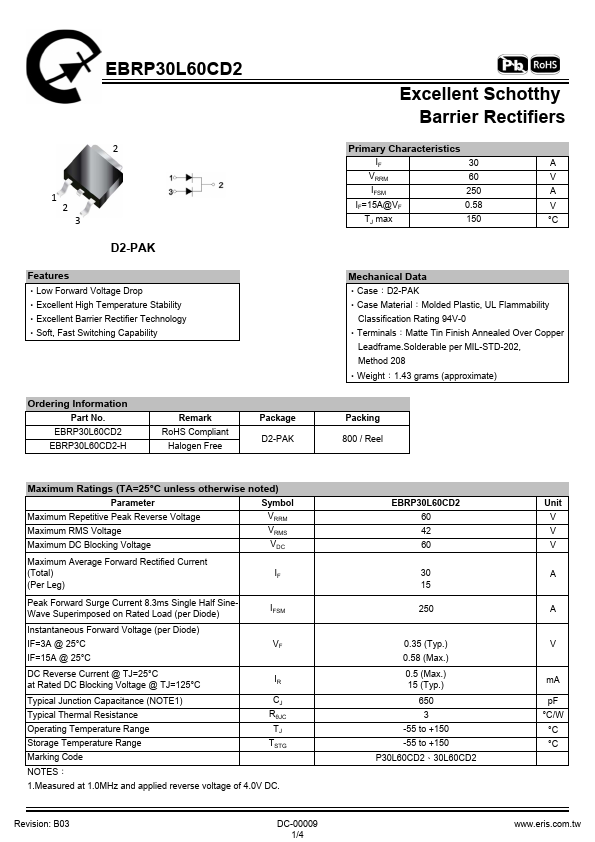

‧Low Forward Voltage Drop ‧Excellent High Temperature Stability ‧Excellent Barrier Rectifier Technology ‧Soft, Fast Switching Capability Ordering Information Part No. EBRP30L60CD2 EBRP30L60CD2-H Remark RoHS Compliant Halogen Free Package D2-PAK Excellent Schotthy Barrier Rectifiers Primary Characteristics IF 30 A VRRM 60 V IFSM 250 A IF=15A@VF 0.58 V TJ max 150 °C Mechanical Data ‧Case：D2-PAK ‧Case Material：Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Termina.
