EBRP10300ST - Excellen Schottky Barrier Rectifiers

Product Overview

Eris

Part number	EBRP10300ST
Manufacturer	Eris
File Size	242.07 KB
Description	Excellen Schottky Barrier Rectifiers
Datasheet	EBRP10300ST Datasheet

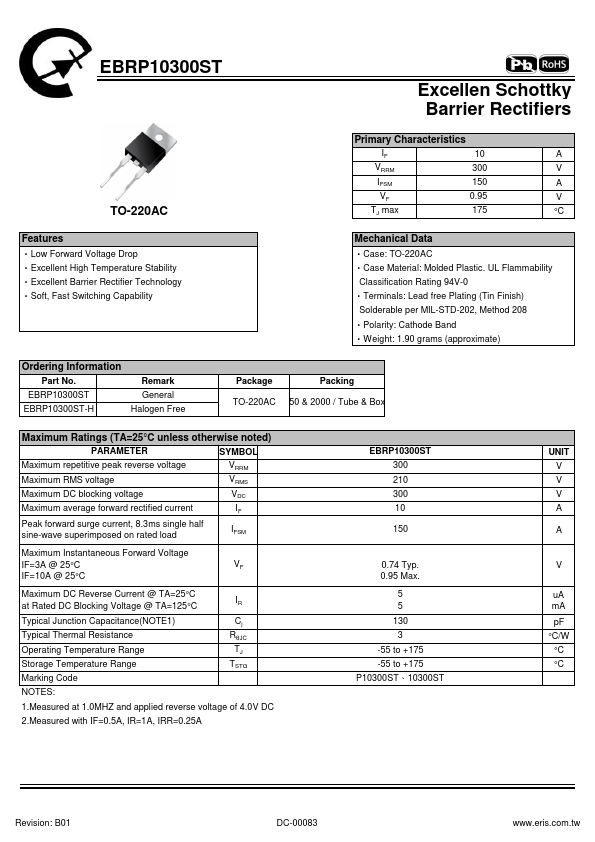

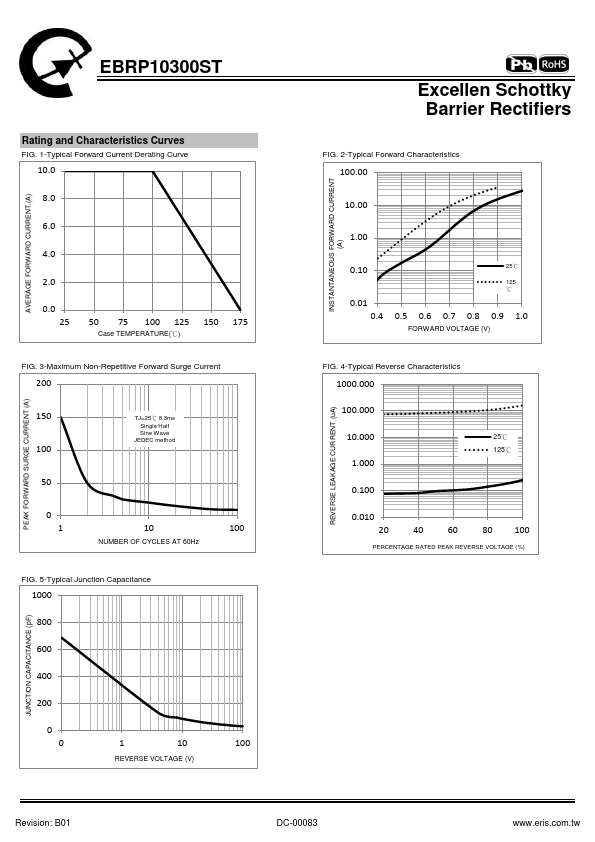

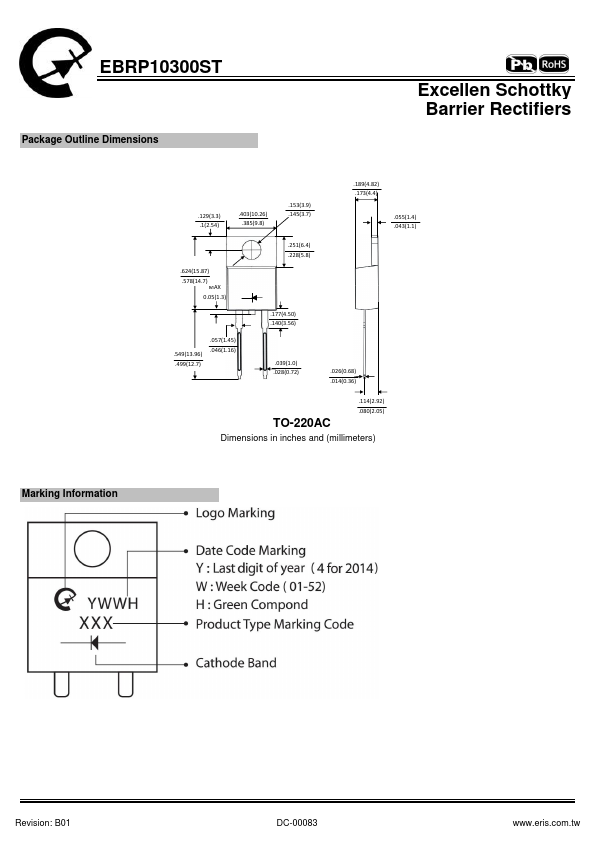

Additional preview pages of the EBRP10300ST datasheet.

‧Low Forward Voltage Drop ‧Excellent High Temperature Stability ‧Excellent Barrier Rectifier Technology ‧Soft, Fast Switching Capability Mechanical Data ‧Case: TO-220AC ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 1.90 grams (approximate) Ordering Information Part No. EBRP10300ST EBRP10300ST-H Remark General Halogen Free Package Packing TO-220AC.
