EBRP10E200FCT - Excellent Schottky Barrier Rectifiers

Product Overview

Eris

Part number	EBRP10E200FCT
Manufacturer	Eris
File Size	382.84 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRP10E200FCT Datasheet

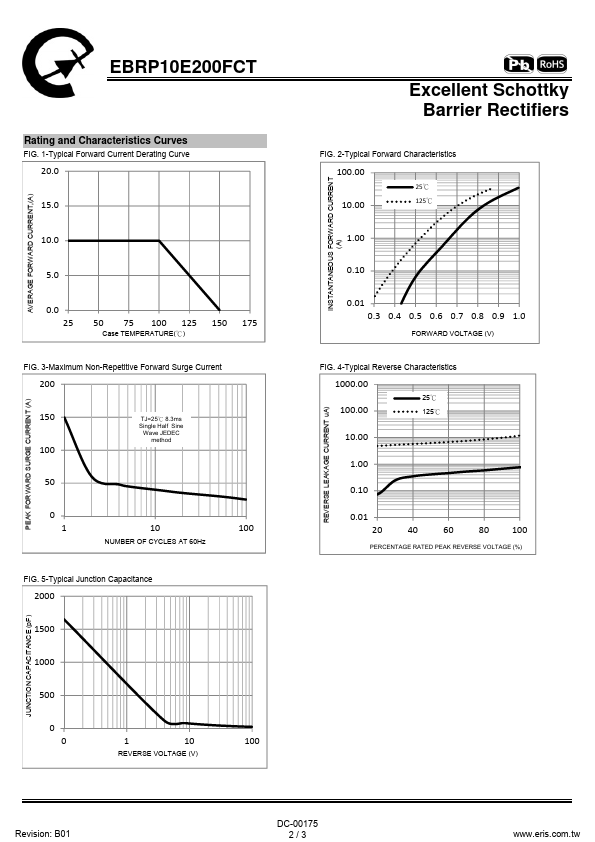

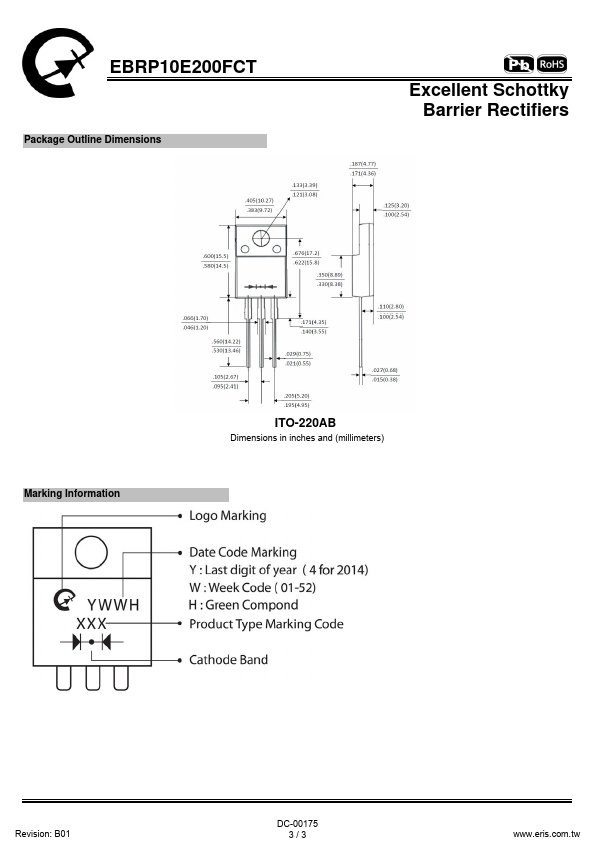

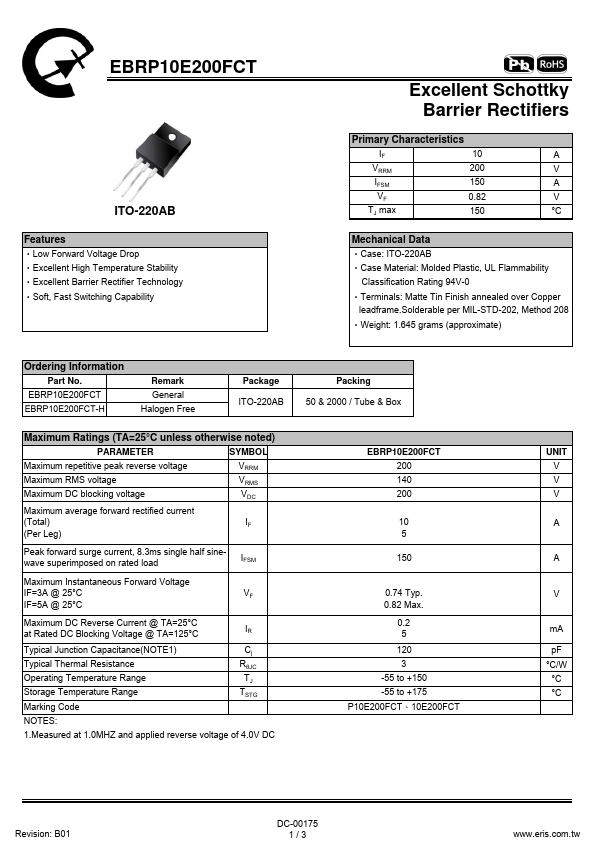

Additional preview pages of the EBRP10E200FCT datasheet.

‧Low Forward Voltage Drop ‧Excellent High Temperature Stability ‧Excellent Barrier Rectifier Technology ‧Soft, Fast Switching Capability Excellent Schottky Barrier Rectifiers Primary Characteristics IF 10 A VRRM 200 V IFSM 150 A VF 0.82 V TJ max 150 °C Mechanical Data ‧Case: ITO-220AB ‧Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals: Matte Tin Finish annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 ‧Weight: 1.645 grams.
