EBRP30E45CD2 - Excellent Schotthy Barrier Rectifiers

Product Overview

Eris

Part number	EBRP30E45CD2
Manufacturer	Eris
File Size	240.71 KB
Description	Excellent Schotthy Barrier Rectifiers
Datasheet	EBRP30E45CD2 Datasheet

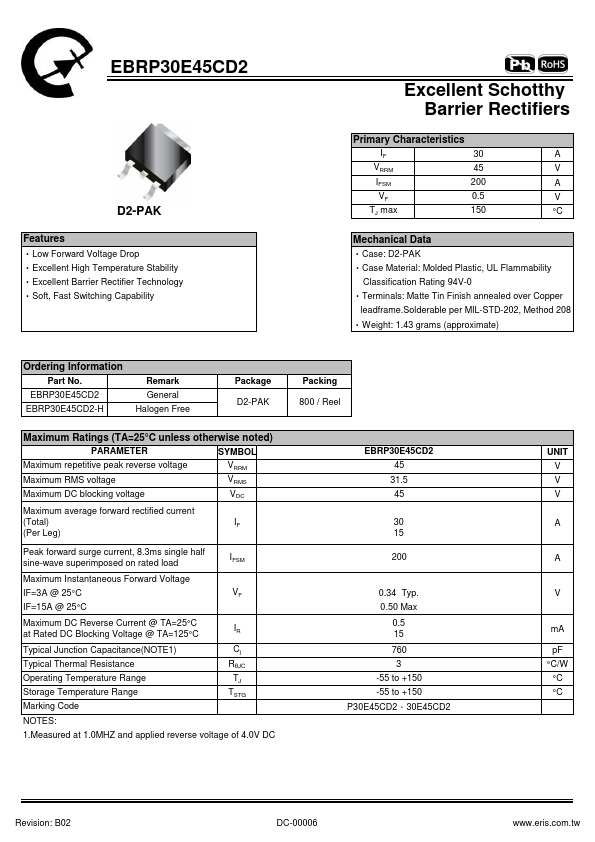

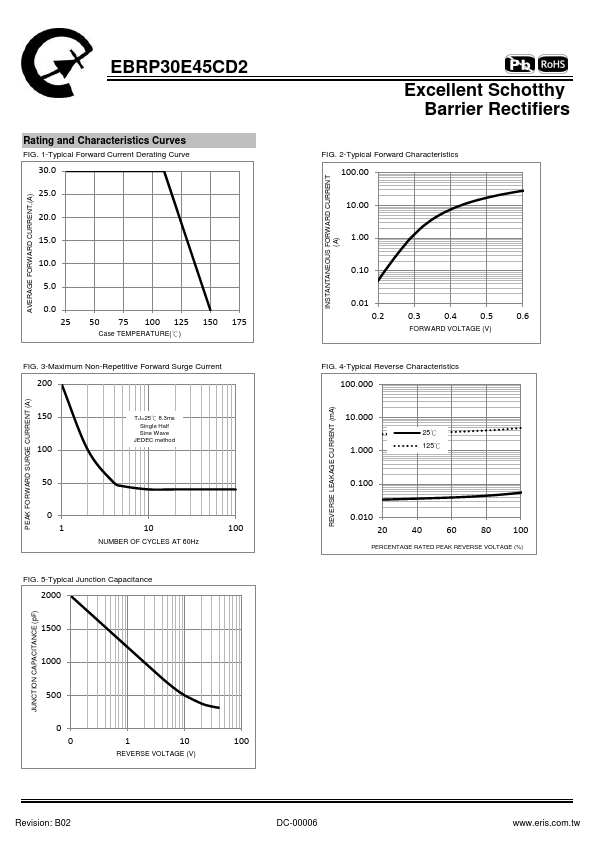

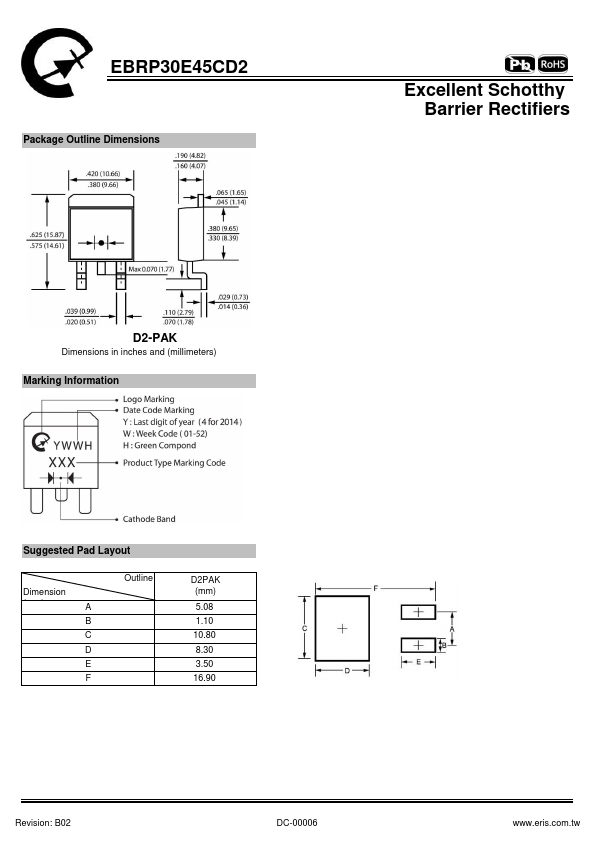

Additional preview pages of the EBRP30E45CD2 datasheet.

‧Low Forward Voltage Drop ‧Excellent High Temperature Stability ‧Excellent Barrier Rectifier Technology ‧Soft, Fast Switching Capability Excellent Schotthy Barrier Rectifiers Primary Characteristics IF 30 A VRRM 45 V IFSM 200 A VF 0.5 V TJ max 150 °C Mechanical Data ‧Case: D2-PAK ‧Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals: Matte Tin Finish annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 ‧Weight: 1.43 grams (appro.
