EBRP30E45CT - Excellent Schottky Barrier Rectifiers

Product Overview

Eris

Part number	EBRP30E45CT
Manufacturer	Eris
File Size	228.51 KB
Description	Excellent Schottky Barrier Rectifiers
Datasheet	EBRP30E45CT Datasheet

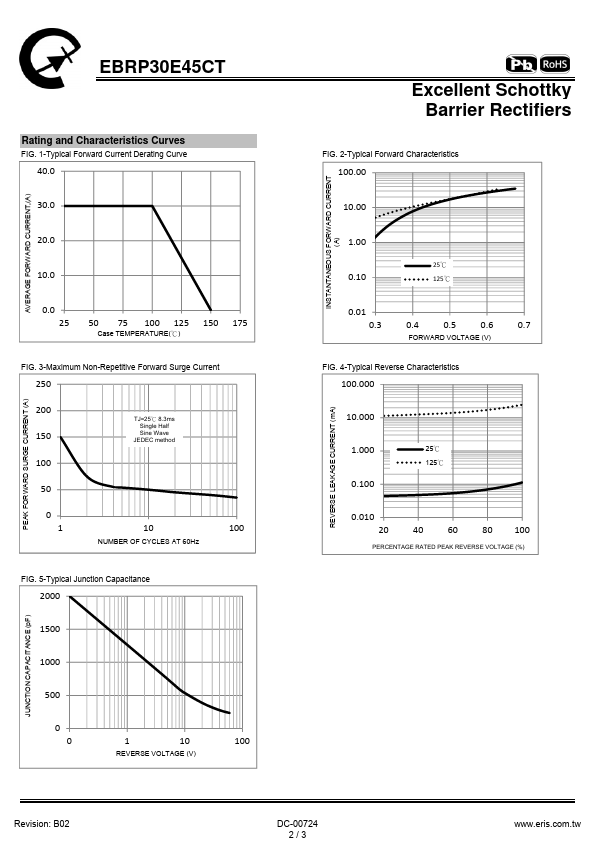

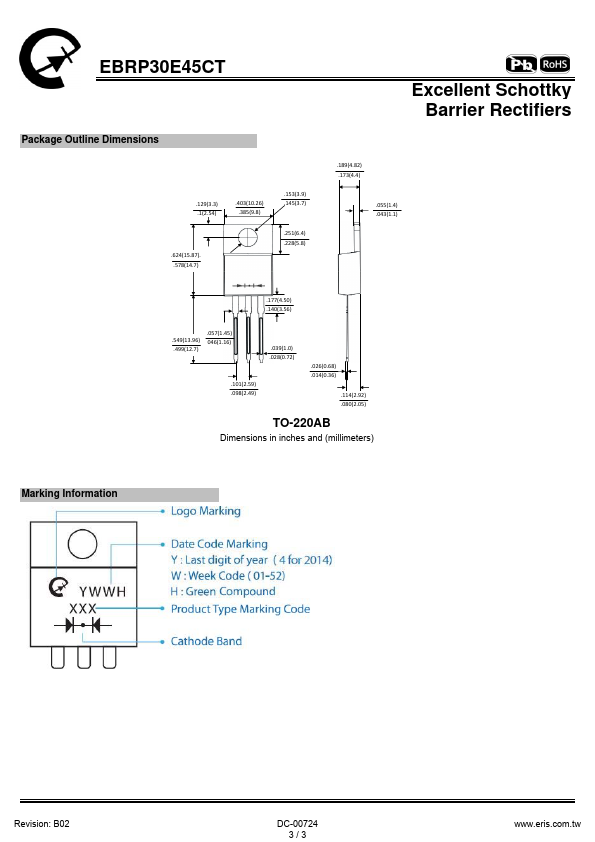

Additional preview pages of the EBRP30E45CT datasheet.

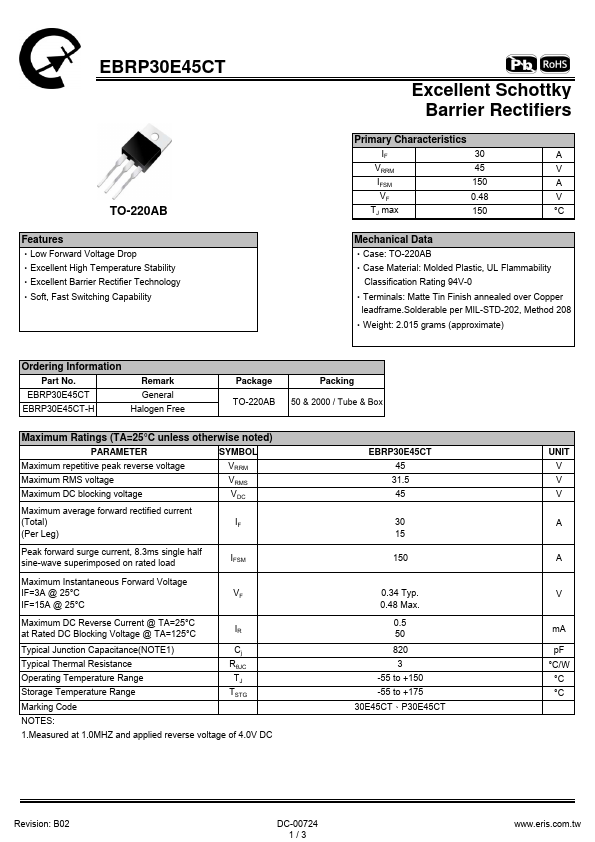

‧Low Forward Voltage Drop ‧Excellent High Temperature Stability ‧Excellent Barrier Rectifier Technology ‧Soft, Fast Switching Capability Excellent Schottky Barrier Rectifiers Primary Characteristics IF 30 A VRRM 45 V IFSM 150 A VF 0.48 V TJ max 150 °C Mechanical Data ‧Case: TO-220AB ‧Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 ‧Terminals: Matte Tin Finish annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 ‧Weight: 2.015 grams (a.
