M24L48512SA - 4-Mbit (512K x 8) Pseudo Static RAM

Name: M24L48512SA
SKU: M24L48512SA-678543

Elite Semiconductor Memory Technology

The M24L48512SA by Elite Semiconductor Memory Technology is a 4-Mbit (512K x 8) Pseudo Static RAM. Below is the official datasheet preview.

📥 Download Datasheet

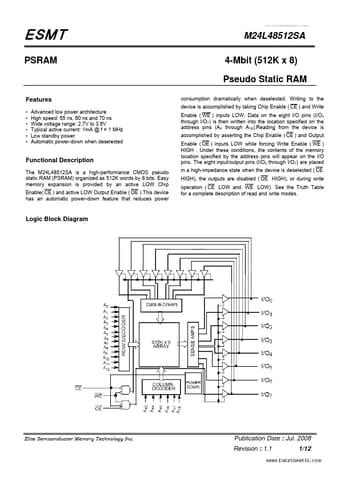

M24L48512SA 4-Mbit (512K x 8) Pseudo Static RAM by Elite Semiconductor Memory Technology - Datasheet Preview — Official preview page of the **M24L48512SA** 4-Mbit (512K x 8) Pseudo Static RAM datasheet (Elite Semiconductor Memory Technology).

Datasheet Details

Part number	M24L48512SA
Manufacturer	Elite Semiconductor Memory Technology
File Size	304.91 KB
Description	4-Mbit (512K x 8) Pseudo Static RAM
Datasheet	M24L48512SA_EliteSemiconductorMemoryTechnology.pdf
Additional preview pages of the M24L48512SA datasheet.

M24L48512SA Product details

Description

of read and write modes.

Features

Advanced low power architecture High speed: 55 ns, 60 ns and 70 ns Wide voltage range: 2.7V to 3.6V Typical active current: 1mA @ f = 1 MHz Low standby power Automatic power-down when deselected consumption dramatically when deselected. Writing to the device is accomplished by taking Chip Enable ( CE ) and Write Enable ( WE ) inputs LOW. Data on the eight I/O pins (I/O0 through I/O7) is then written into the location specified on the a.
