ELM65103A-S - Single P-channel MOSFET

Product Overview

ELM

Part number	ELM65103A-S
Manufacturer	ELM
File Size	596.05 KB
Description	Single P-channel MOSFET
Datasheet	ELM65103A-S Datasheet

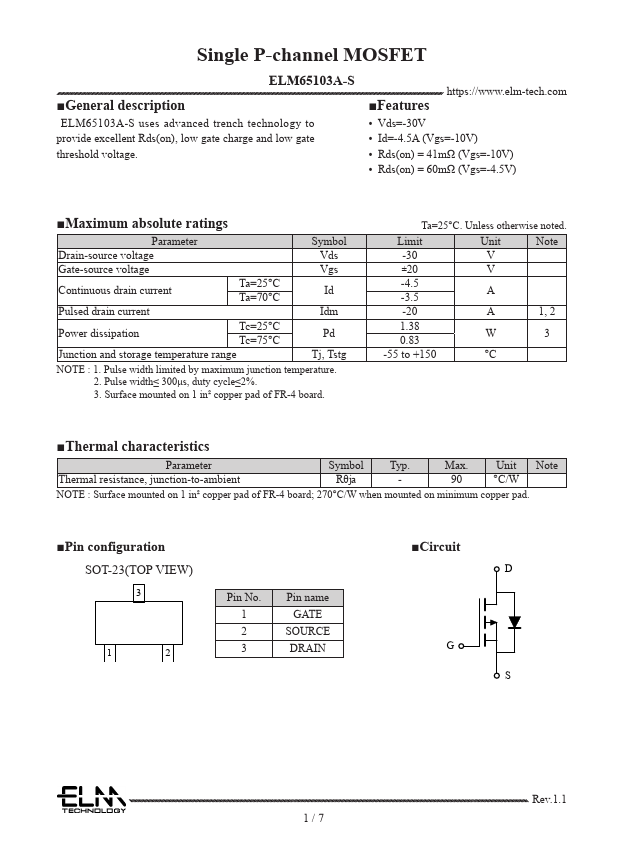

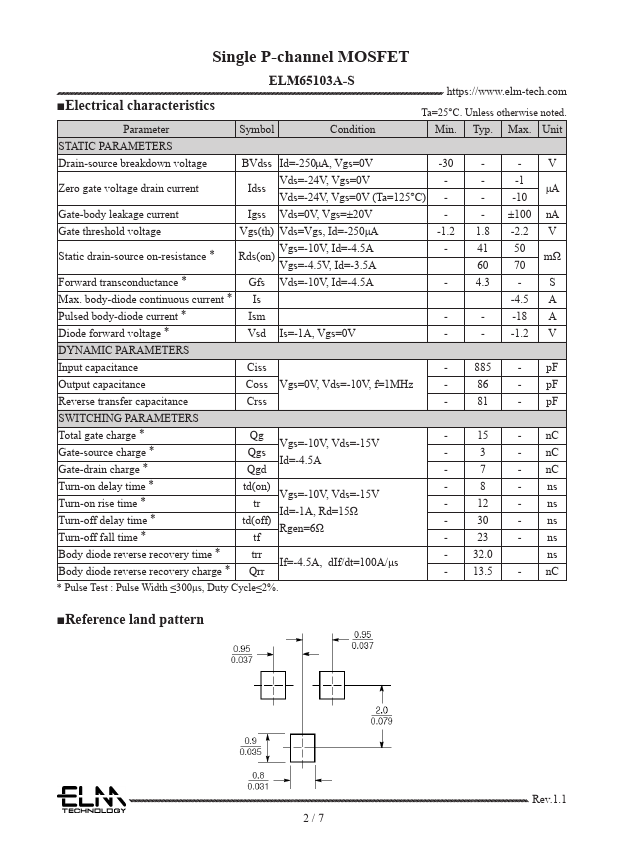

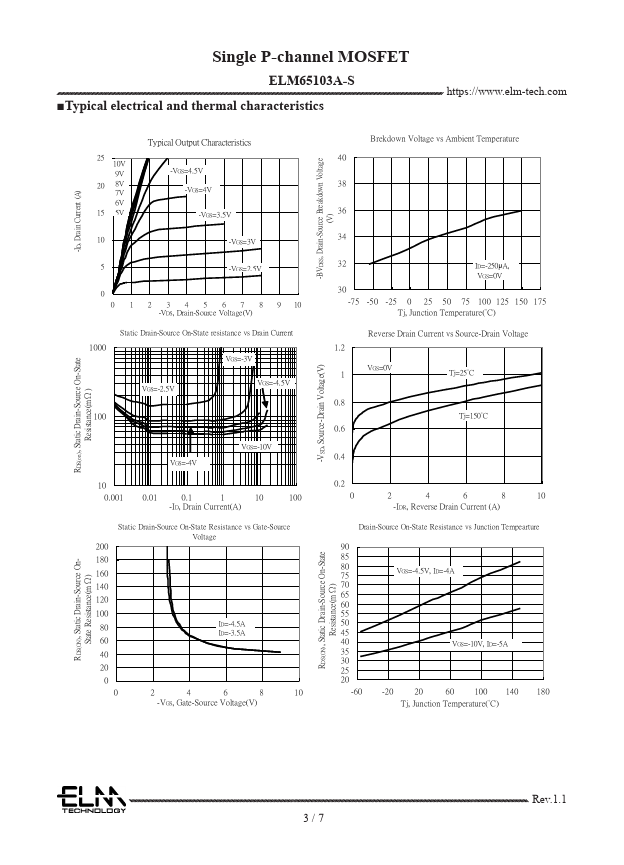

Additional preview pages of the ELM65103A-S datasheet.

ELM65103A-S uses advanced trench technology to provide excellent Rds(on), low gate charge and low gate threshold voltage.

Vds=-30V.
Id=-4.5A (Vgs=-10V).
Rds(on) = 41mΩ (Vgs=-10V).
Rds(on) = 60mΩ (Vgs=-4.5V).
Maximum absolute ratings Parameter Symbol Drain-source voltage Vds Gate-source voltage Vgs Continuous drain current Ta=25°C Ta=70°C Id Pulsed drain current Idm Power dissipation Tc=25°C Tc=75°C Pd Junction and storage temperature range Tj, Tstg NOTE : 1. Pulse width limited by maximum junction temperature. 2. Pulse width≤ 300μs, duty cycle≤2%. 3. Surfa.
