ELM624 - Control L (LANC) to RS232 Interpreter

Description

The Control L or LANC interface is an industry standard introduced by the Sony Corporation for controlling audio and video devices.

something which is difficult to do using standard

Features

  • typically found in commercial devices, such as RS232 handshaking, variable baud rates, extra buffering of signals, etc. have not been implemented. Responses are kept to a minimum as well (eg. a single question mark is returned for a misunderstood command), but the general principles of operation are demonstrated and for many.

📥 Download Datasheet

Datasheet Details

Part number ELM624
Manufacturer ELM Electronics
File Size 87.36 KB
Description Control L (LANC) to RS232 Interpreter
Datasheet download datasheet ELM624 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ELM621LA High efficiency 30V step up DC/DC converter ELM Technology
ELM610DA 1.3A 36V PWM step down DC/DC converter ELM Technology
ELM611DA high efficiency synchronous PWM step down DC/DC converter ELM Technology
ELM612DA 3A 36V PWM step down DC/DC converter ELM Technology
ELM613DA synchronous step-down DC/DC converter ELM Technology

Other Datasheets by ELM Electronics

Part Number Description
ELM621 SERIAL 3-BIT PORT
ELM622 Infrared Remote Interpreter
ELM626 RS232 Break Detector
ELM627 RS232 Break Detector
ELM630 LIN Monitor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

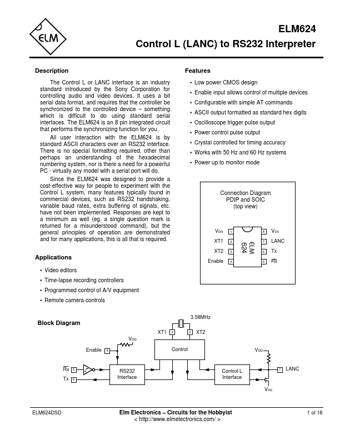

ELM624 Control L (LANC) to RS232 Interpreter Description The Control L or LANC interface is an industry standard introduced by the Sony Corporation for controlling audio and video devices. It uses a bit serial data format, and requires that the controller be synchronized to the controlled device – something which is difficult to do using standard serial interfaces. The ELM624 is an 8 pin integrated circuit that performs the synchronizing function for you. All user interaction with the ELM624 is by standard ASCII characters over an RS232 interface. There is no special formatting required, other than perhaps an understanding of the hexadecimal numbering system, nor is there a need for a powerful PC - virtually any model with a serial port will do.
