ELM6PB8P6FCA-S - Single P-channel MOSFET

Product Overview

ELM

Part number	ELM6PB8P6FCA-S
Manufacturer	ELM
File Size	797.33 KB
Description	Single P-channel MOSFET
Datasheet	ELM6PB8P6FCA-S Datasheet

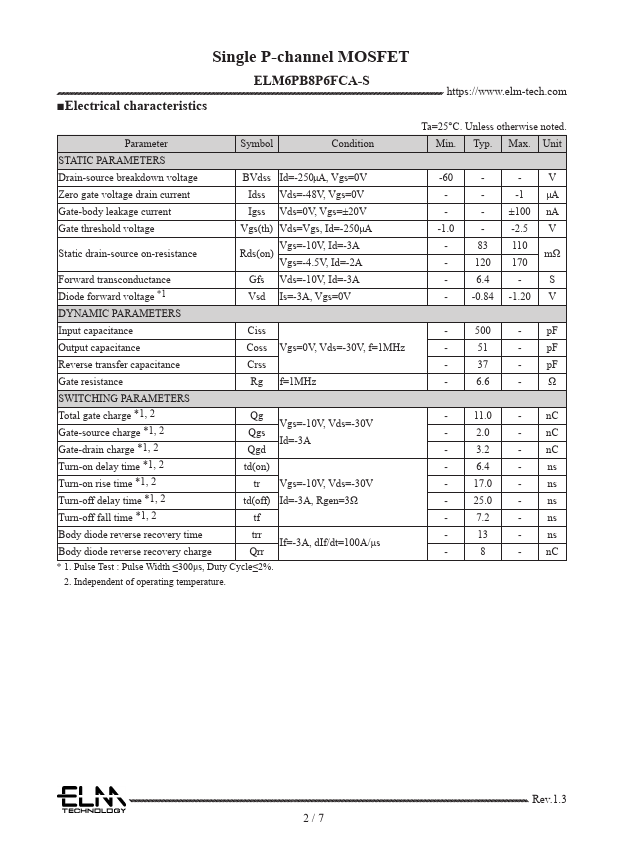

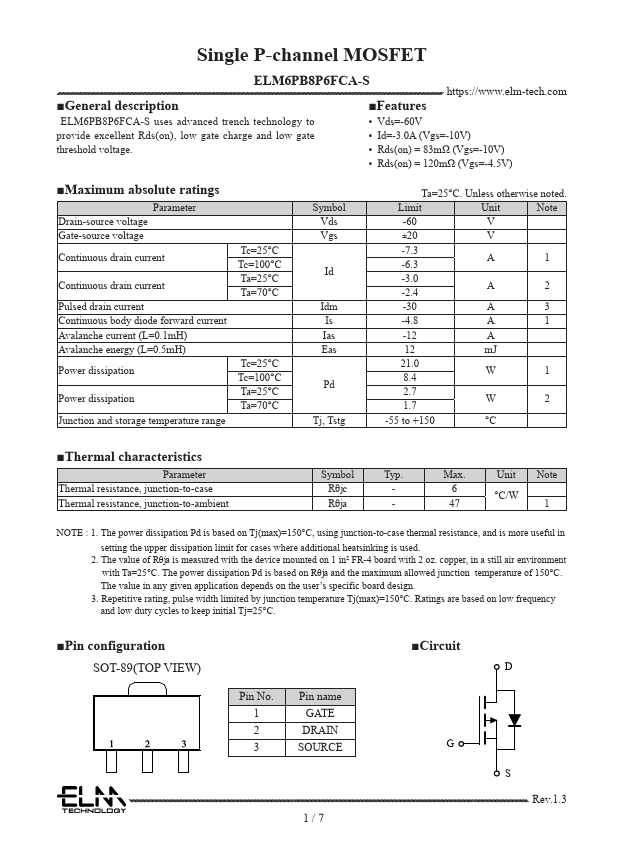

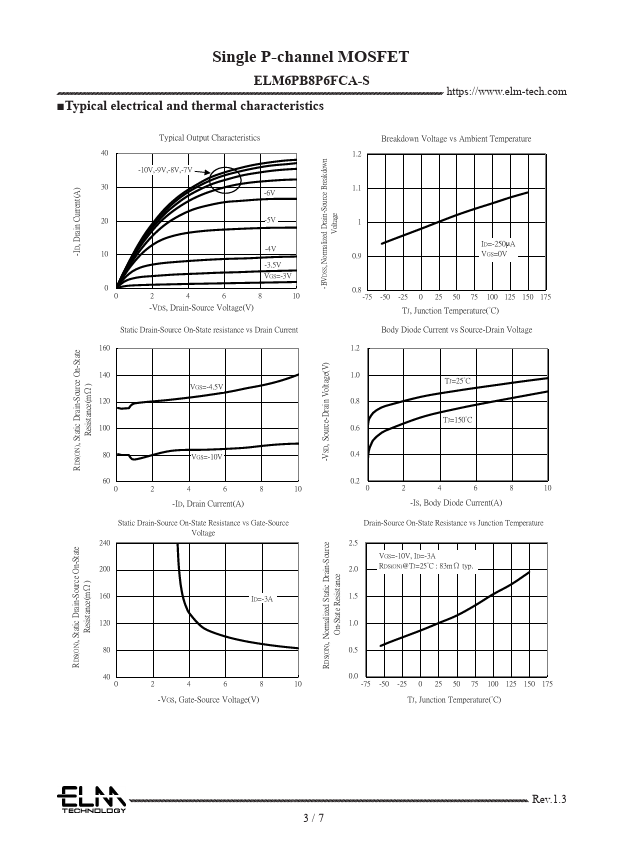

Additional preview pages of the ELM6PB8P6FCA-S datasheet.

ELM6PB8P6FCA-S uses advanced trench technology to.
Vds=-60V provide excellent Rds(on), low gate charge and low gate.
Id=-3.0A (Vgs=-10V) threshold voltage.
Rds(on) = 83mΩ (Vgs=-10V).
Rds(on) = 120mΩ (Vgs=-4.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current Continuous drain current Pulsed drain current Continuous body diode forward current Avalanche current (L=0.1mH) Avalanche energy (L=0.5mH.
