ELM622 - Infrared Remote Interpreter

ELM Electronics

Datasheet Details

Part number	ELM622
Manufacturer	ELM Electronics
File Size	22.73 KB
Description	Infrared Remote Interpreter
Datasheet	ELM622_ELMElectronics.pdf

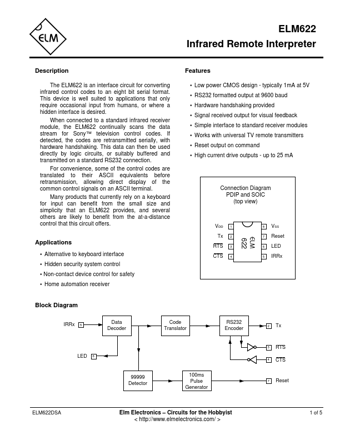

The ELM622 is an interface circuit for converting infrared control codes to an eight bit serial format.

Low power CMOS design - typically 1mA at 5V.
RS232 formatted output at 9600 baud.
Hardware handshaking provided.
Signal received output for visual feedback.
Simple interface to standard receiver modules.
Works with universal TV remote transmitters.
Reset output on command.
High current drive outputs - up to 25 mA Connection Diagram PDIP and SOIC (top view) VDD 1 Tx 2 RTS 3 CTS 4 8 VSS 7 Reset 6 LED 5 IRRx Block Diagram.
