ELM582061A-S - Dual P-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

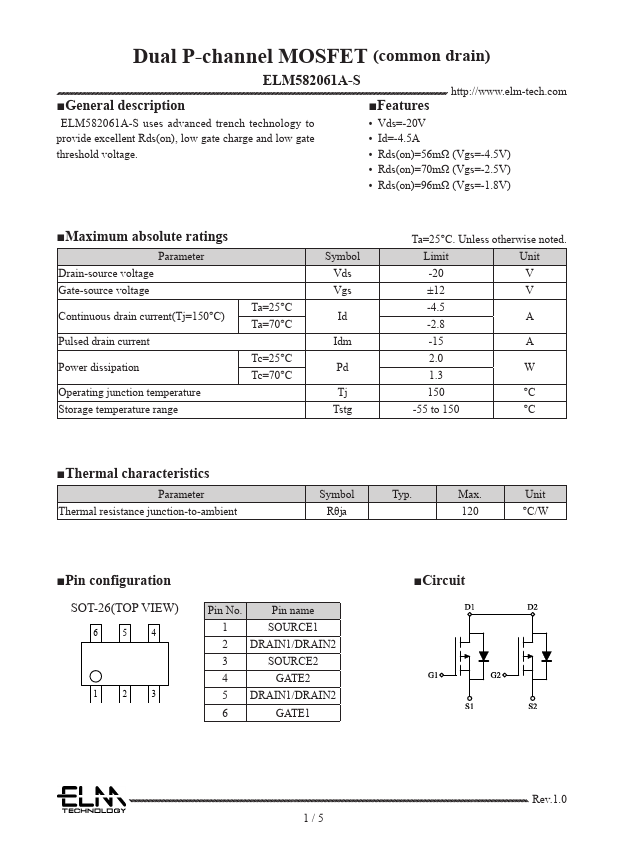

ELM582061A-S Dual P-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM582061A-S

Datasheet Details

Part number	ELM582061A-S
Manufacturer	ELM
File Size	778.16 KB
Description	Dual P-channel MOSFET
Datasheet	ELM582061A-S Datasheet

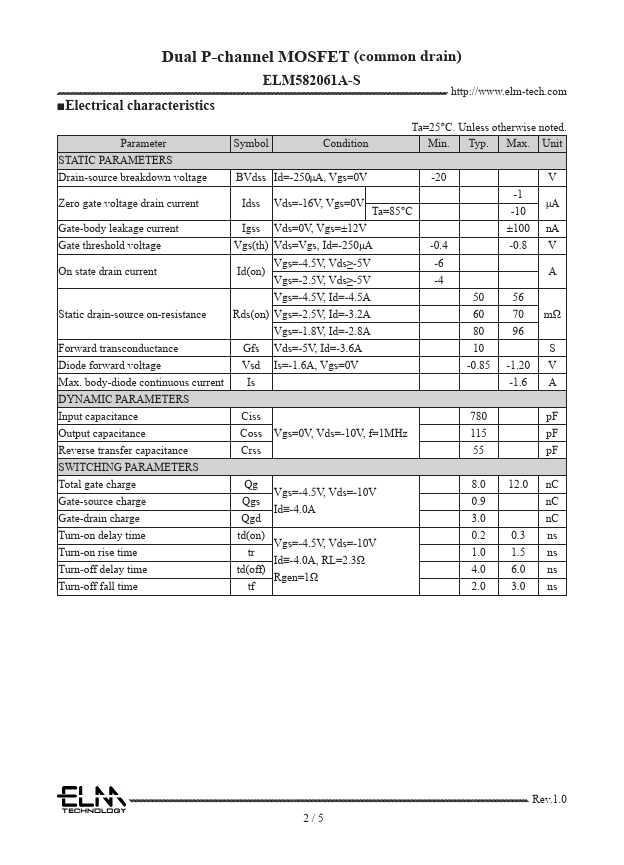

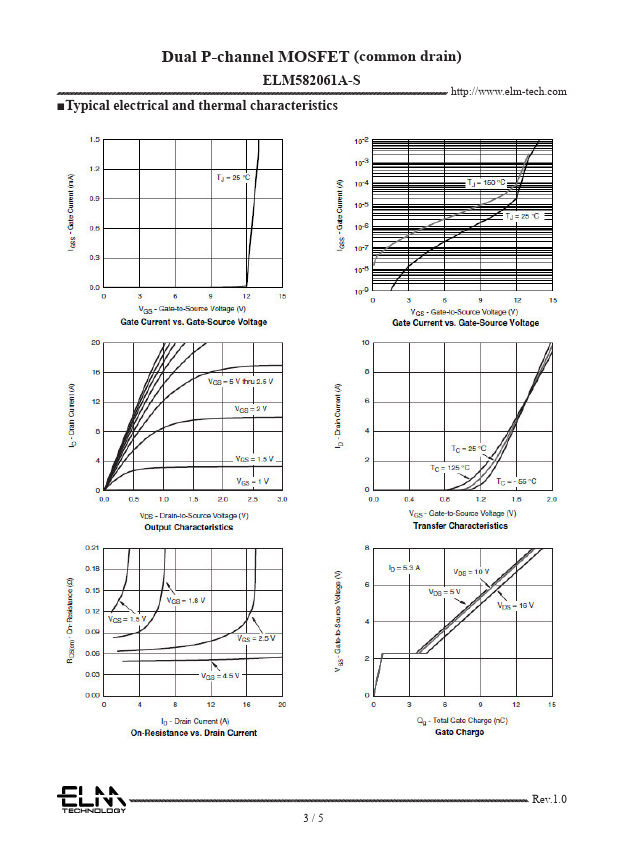

Additional preview pages of the ELM582061A-S datasheet.

Product details

Features

ELM582061A-S uses advanced trench technology to.
Vds=-20V provide excellent Rds(on), low gate charge and low gate.
Id=-4.5A threshold voltage.
Rds(on)=56mΩ (Vgs=-4.5V).
Rds(on)=70mΩ (Vgs=-2.5V).
Rds(on)=96mΩ (Vgs=-1.8V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current(Tj=150°C) Pulsed drain current Power dissipation Operating junction temperature Storage temperature range Ta=25°C Ta=.
