ELM58473A-S - Single P-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

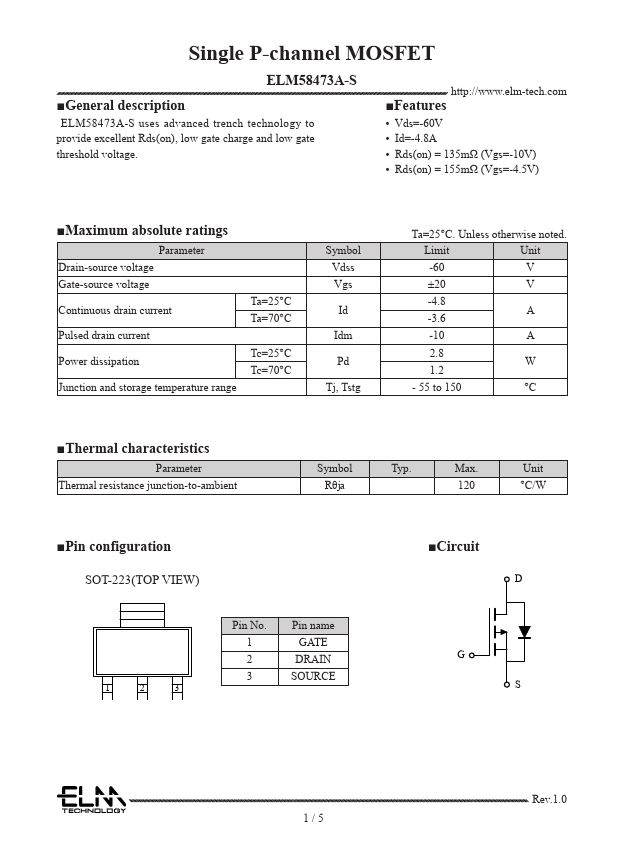

ELM58473A-S Single P-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM58473A-S

Datasheet Details

Part number	ELM58473A-S
Manufacturer	ELM
File Size	867.86 KB
Description	Single P-channel MOSFET
Datasheet	ELM58473A-S Datasheet

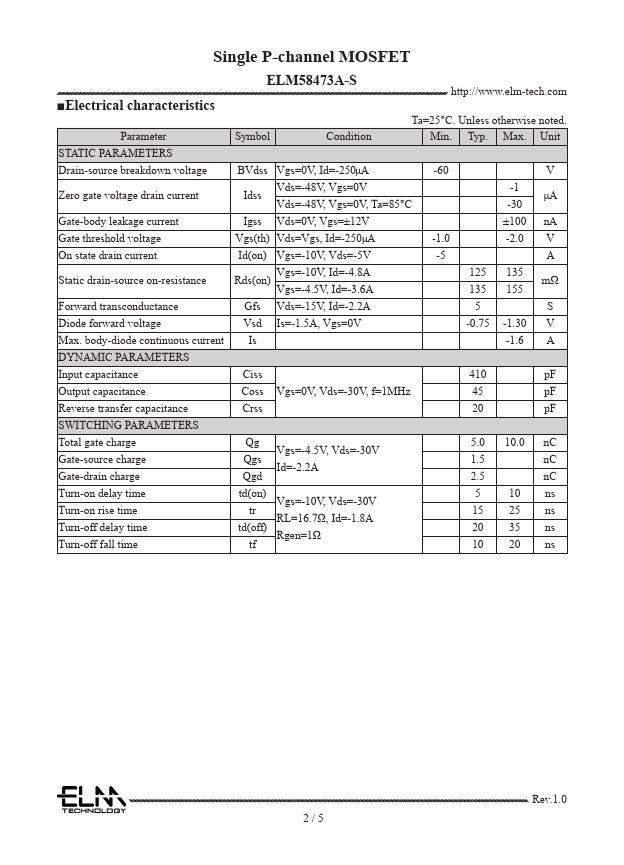

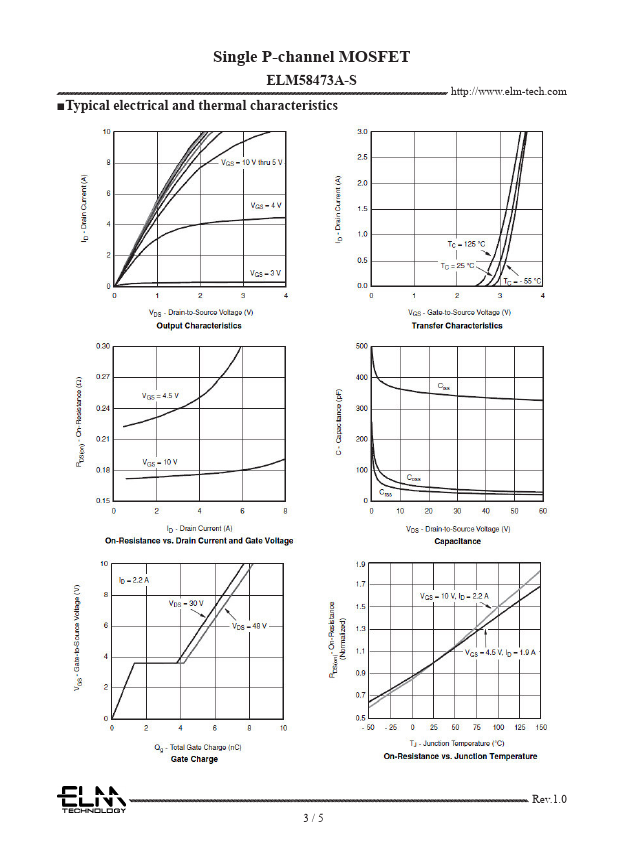

Additional preview pages of the ELM58473A-S datasheet.

Product details

Description

ELM58473A-S uses advanced trench technology to provide excellent Rds(on), low gate charge and low gate threshold voltage.

Features

Vds=-60V.
Id=-4.8A.
Rds(on) = 135mΩ (Vgs=-10V).
Rds(on) = 155mΩ (Vgs=-4.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current Pulsed drain current Power dissipation Junction and storage temperature range Ta=25°C Ta=70°C Tc=25°C Tc=70°C Symbol Vdss Vgs Id Idm Pd Tj, Tstg Ta=25°C. Unless otherwise noted. Limit Unit -60 V ±20 V -4.8 A -3.6 -10 A 2.8 W 1.2 - 55 to 150 °C.
Thermal charac.
