ELM582050A-S - Dual N-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

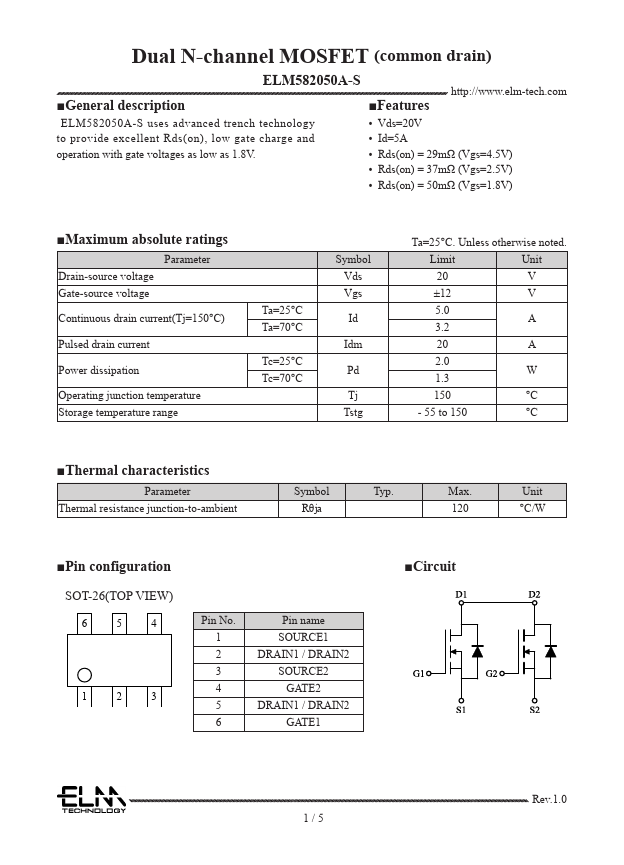

ELM582050A-S Dual N-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM582050A-S

Datasheet Details

Part number	ELM582050A-S
Manufacturer	ELM
File Size	838.91 KB
Description	Dual N-channel MOSFET
Datasheet	ELM582050A-S Datasheet

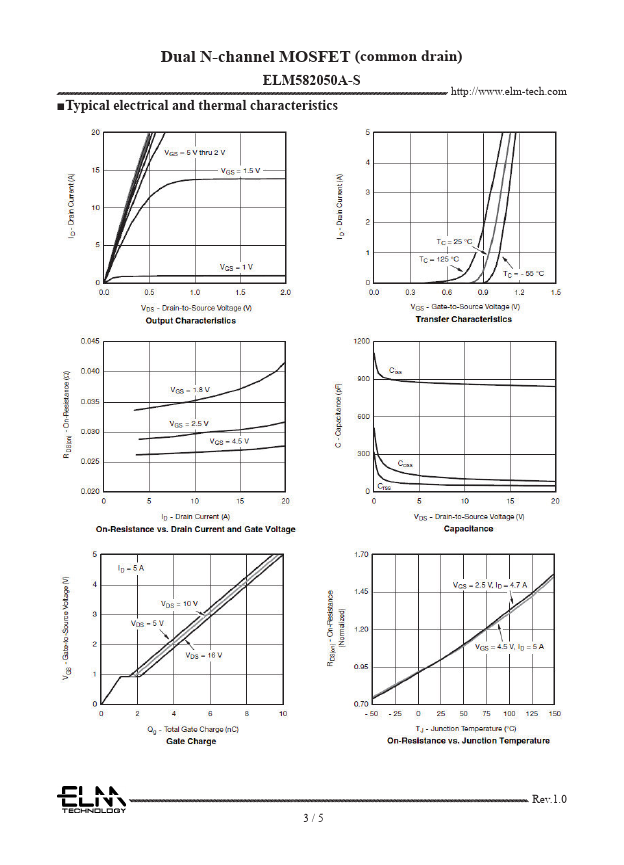

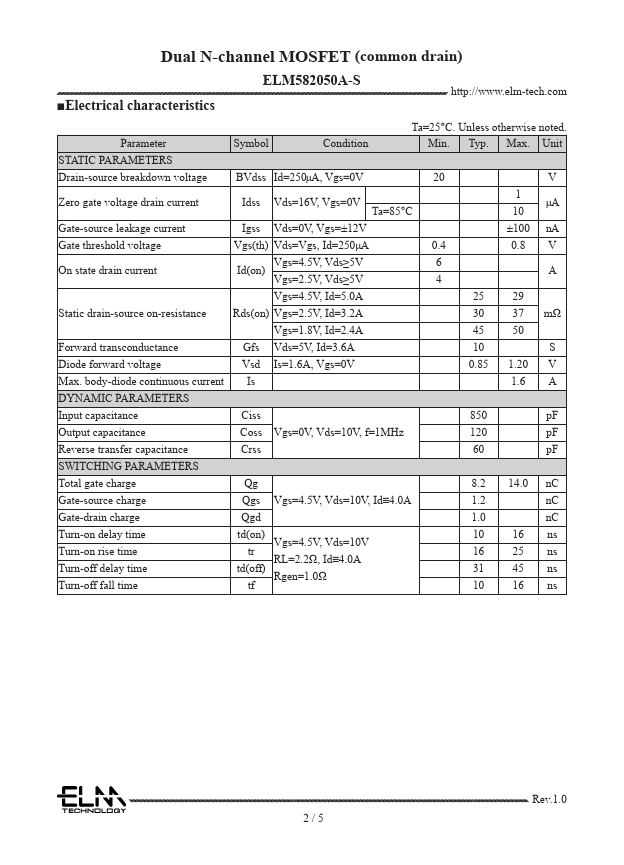

Additional preview pages of the ELM582050A-S datasheet.

Product details

Features

ELM582050A-S uses advanced trench technology.
Vds=20V to provide excellent Rds(on), low gate charge and.
Id=5A operation with gate voltages as low as 1.8V.
Rds(on) = 29mΩ (Vgs=4.5V).
Rds(on) = 37mΩ (Vgs=2.5V).
Rds(on) = 50mΩ (Vgs=1.8V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current(Tj=150°C) Pulsed drain current Power dissipation Operating junction temperature Storage temperature ra.
