ELM55616CA-S - Complementary MOSFET

Product Overview

ELM

📥 Download Datasheet

ELM55616CA-S Complementary MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM55616CA-S

Datasheet Details

Part number	ELM55616CA-S
Manufacturer	ELM
File Size	1.39 MB
Description	Complementary MOSFET
Datasheet	ELM55616CA-S Datasheet

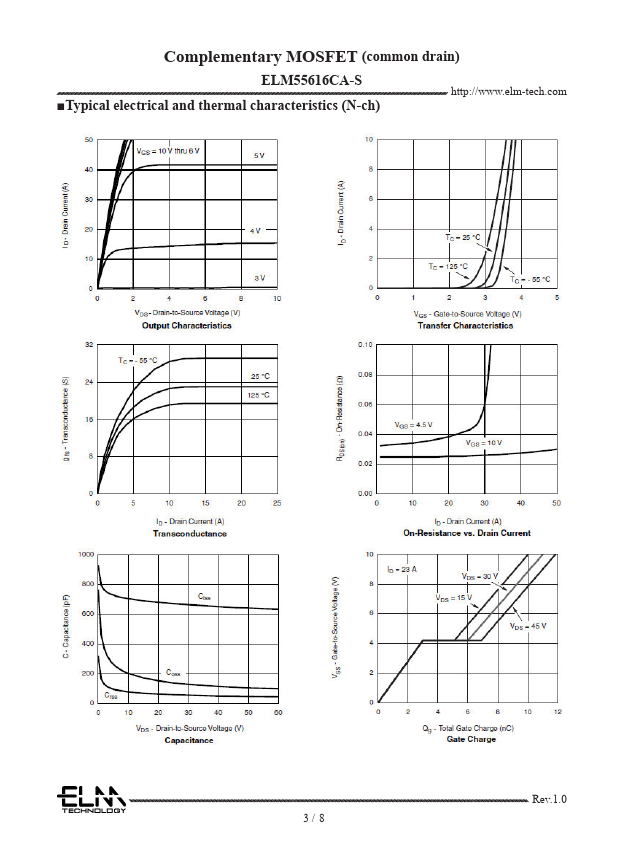

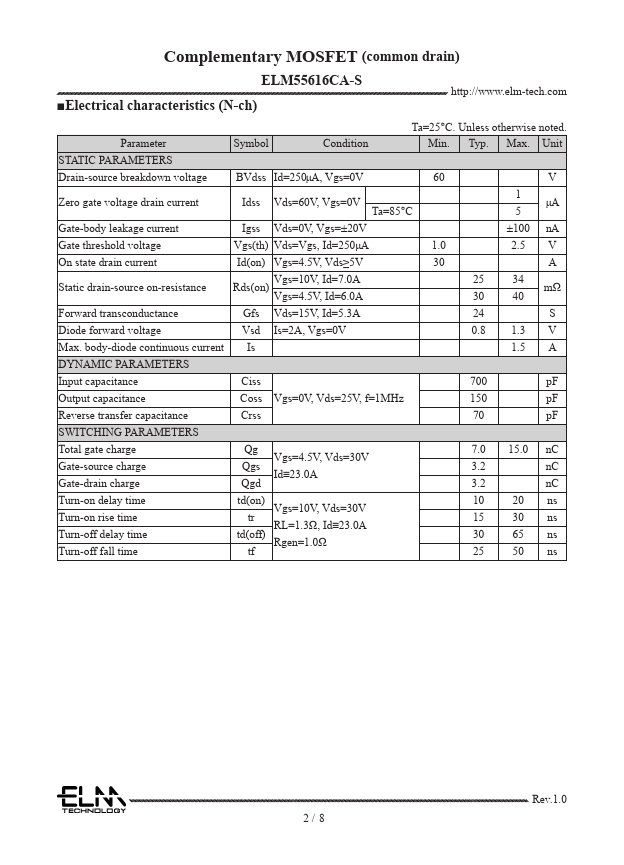

Additional preview pages of the ELM55616CA-S datasheet.

Product details

Description

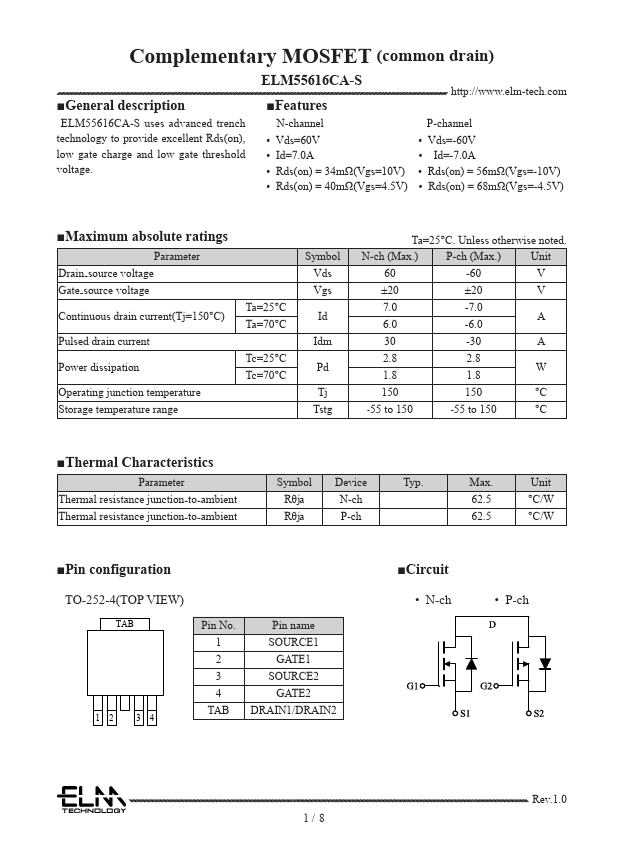

ELM55616CA-S uses advanced trench technology to provide excellent Rds(on), low gate charge and low gate threshold voltage.

Features

N-channel.
Vds=60V.
Id=7.0A.
Rds(on) = 34mΩ(Vgs=10V).
Rds(on) = 40mΩ(Vgs=4.5V) http://www. elm-tech. com P-channel.
Vds=-60V.
Id=-7.0A.
Rds(on) = 56mΩ(Vgs=-10V).
Rds(on) = 68mΩ(Vgs=-4.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current(Tj=150°C) Pulsed drain current Power dissipation Operating junction temperature Storage temperature range Ta=25°C Ta=70°C Tc=25°C Tc.
