Description

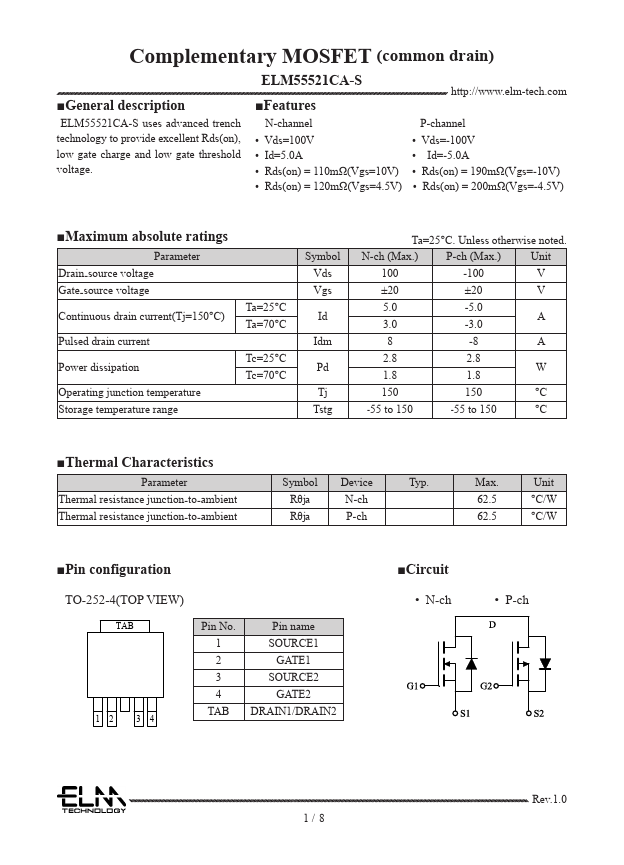

ELM55521CA-S uses advanced trench technology to provide excellent Rds(on), low gate charge and low gate threshold voltage.

Features

http://www. elm-tech. com N-channel P-channel.
Vds=100V.
Vds=-100V.
Id=5.0A.
Id=-5.0A.
Rds(on) = 110mΩ(Vgs=10V).
Rds(on) = 190mΩ(Vgs=-10V).
Rds(on) = 120mΩ(Vgs=4.5V).
Rds(on) = 200mΩ(Vgs=-4.5V).

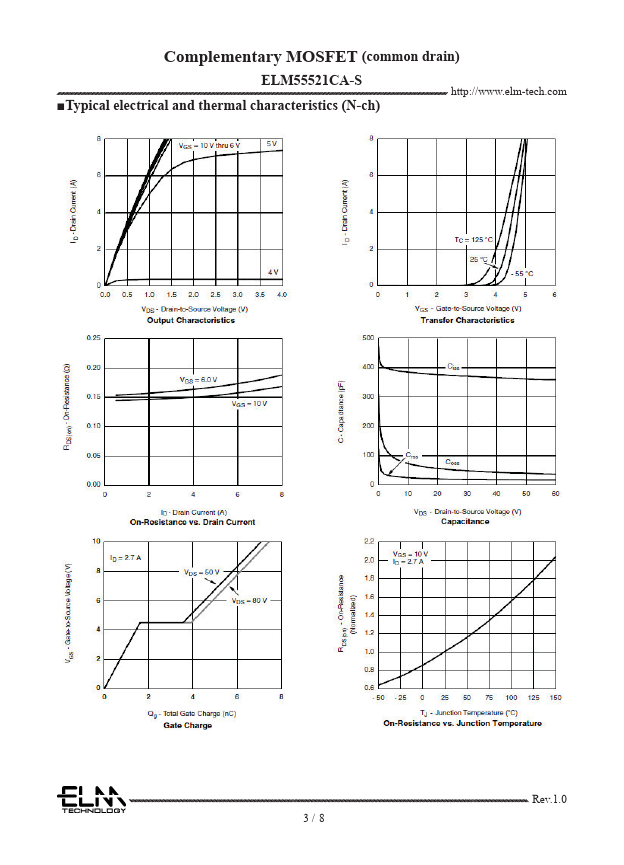

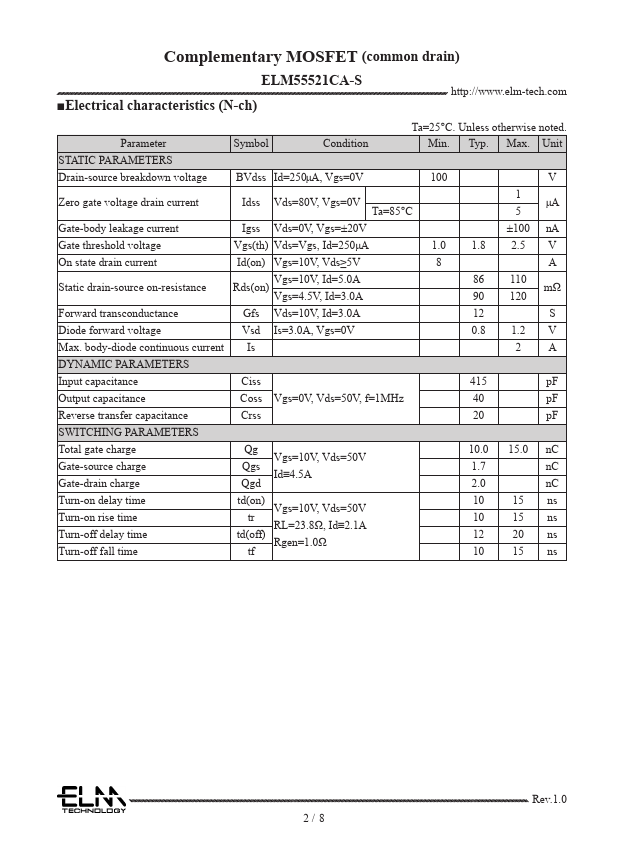

Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current(Tj=150°C) Pulsed drain current Power dissipation Operating junction temperature Storage temperature range Ta=25°C Ta=7.
