ELM55039SA-S - Single P-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

ELM55039SA-S Single P-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM55039SA-S

Datasheet Details

Part number	ELM55039SA-S
Manufacturer	ELM
File Size	853.97 KB
Description	Single P-channel MOSFET
Datasheet	ELM55039SA-S Datasheet

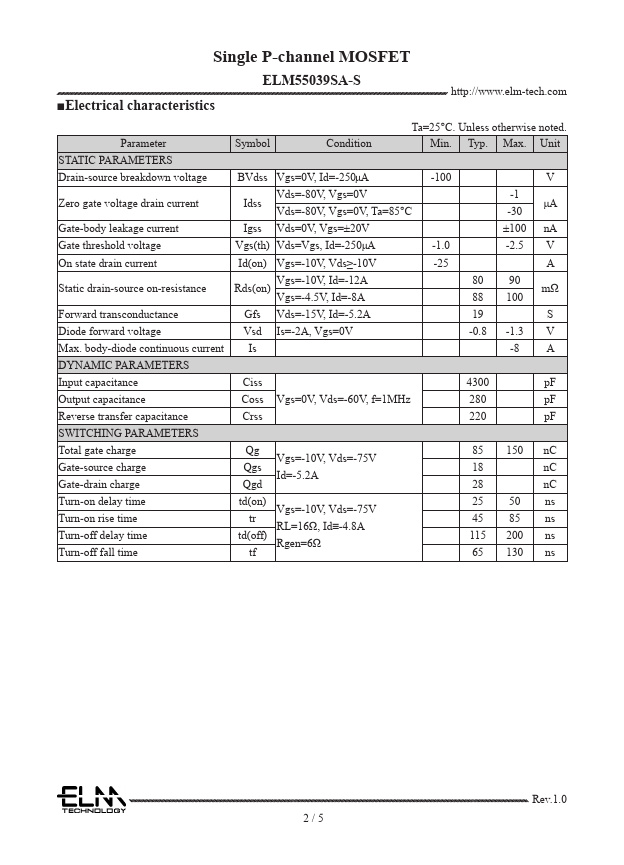

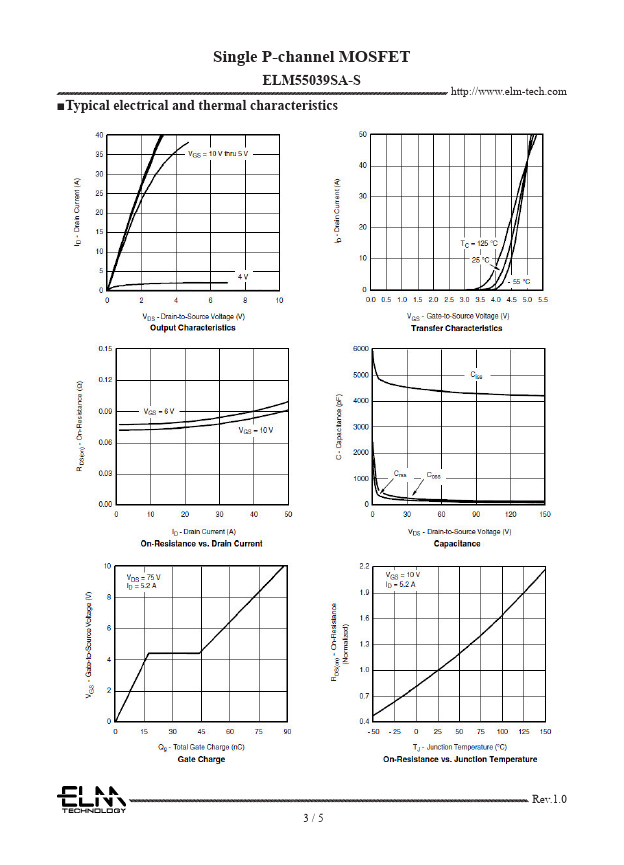

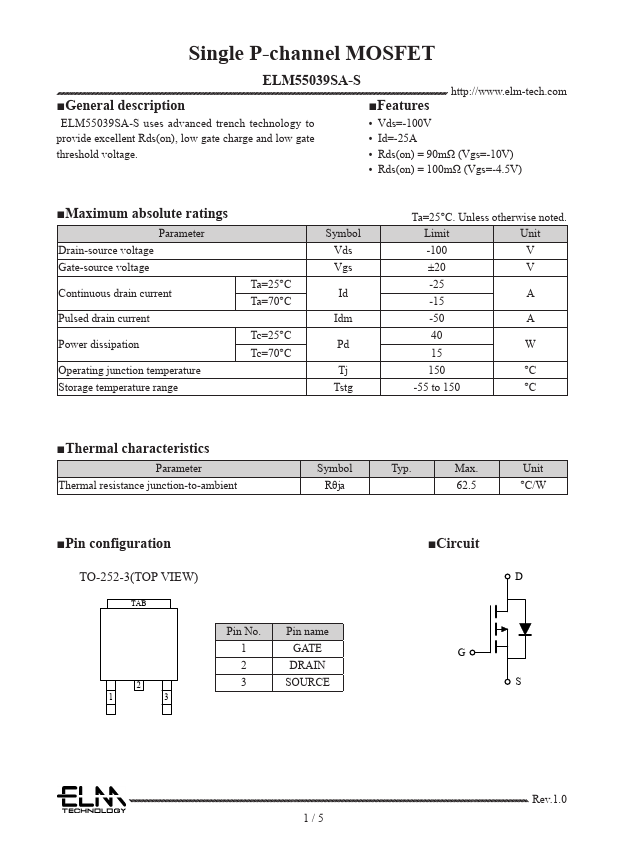

Additional preview pages of the ELM55039SA-S datasheet.

Product details

Features

ELM55039SA-S uses advanced trench technology to.
Vds=-100V provide excellent Rds(on), low gate charge and low gate.
Id=-25A threshold voltage.
Rds(on) = 90mΩ (Vgs=-10V).
Rds(on) = 100mΩ (Vgs=-4.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current Pulsed drain current Power dissipation Operating junction temperature Storage temperature range Ta=25°C Ta=70°C Tc=25°C Tc=70°C Symbol Vds Vgs Id Id.
