ELM4N8066FDA-N - Single N-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

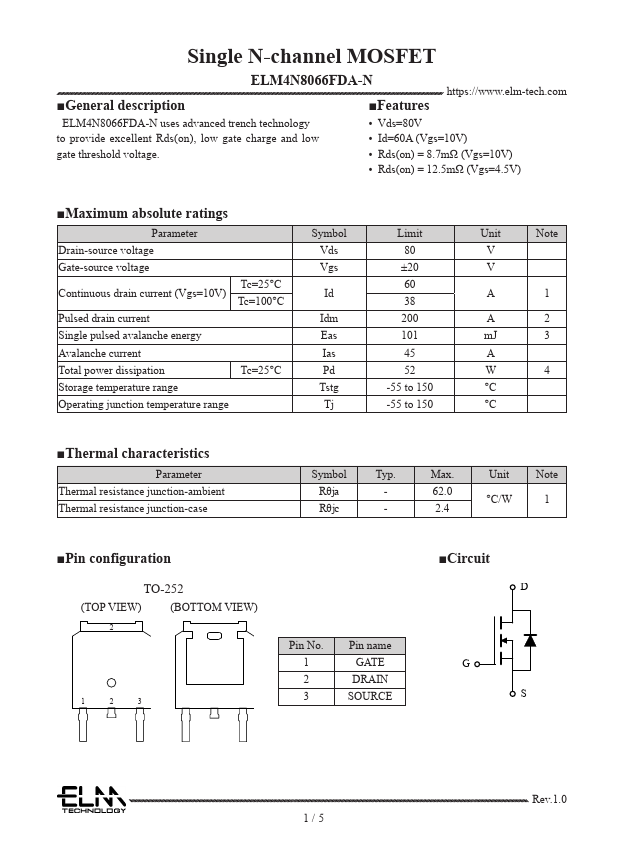

ELM4N8066FDA-N Single N-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM4N8066FDA-N

Datasheet Details

Part number	ELM4N8066FDA-N
Manufacturer	ELM
File Size	2.32 MB
Description	Single N-channel MOSFET
Datasheet	ELM4N8066FDA-N Datasheet

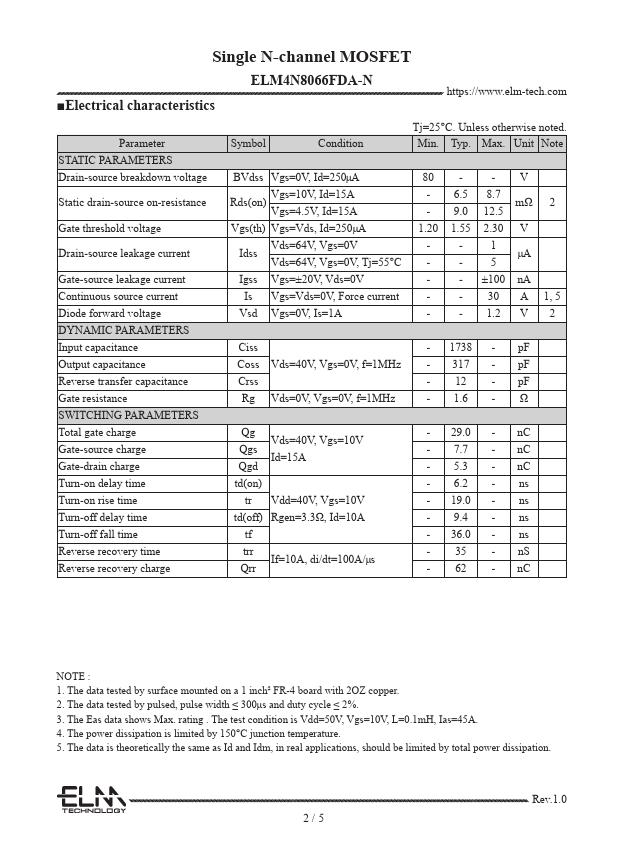

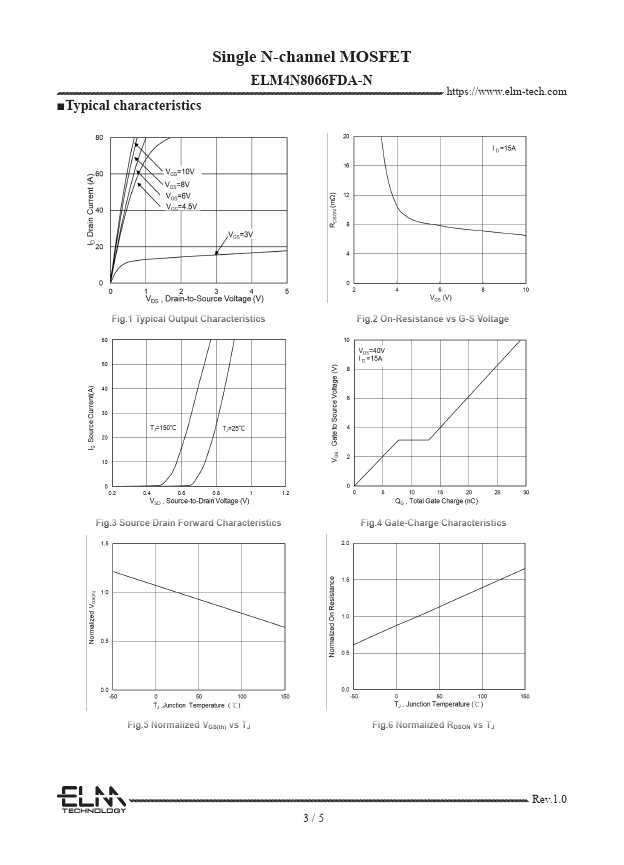

Additional preview pages of the ELM4N8066FDA-N datasheet.

Product details

Features

ELM4N8066FDA-N uses advanced trench technology.
Vds=80V to provide excellent Rds(on), low gate charge and low.
Id=60A (Vgs=10V) gate threshold voltage.
Rds(on) = 8.7mΩ (Vgs=10V).
Rds(on) = 12.5mΩ (Vgs=4.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Tc=25°C Continuous drain current (Vgs=10V) Tc=100°C Pulsed drain current Single pulsed avalanche energy Avalanche current Total power dissipation Tc=25°C St.
