ELM4N0006FUA-S - Single N-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

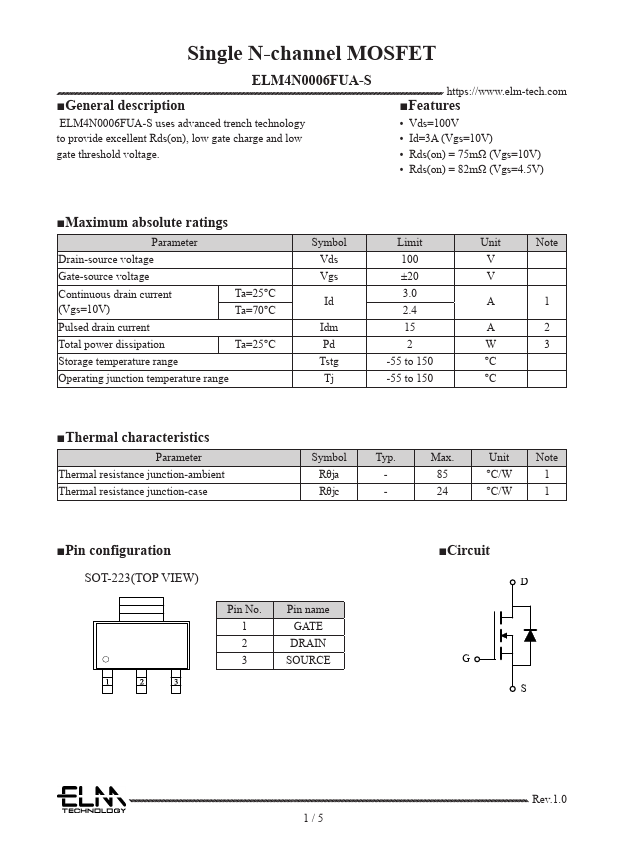

ELM4N0006FUA-S Single N-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM4N0006FUA-S

Datasheet Details

Part number	ELM4N0006FUA-S
Manufacturer	ELM
File Size	545.80 KB
Description	Single N-channel MOSFET
Datasheet	ELM4N0006FUA-S Datasheet

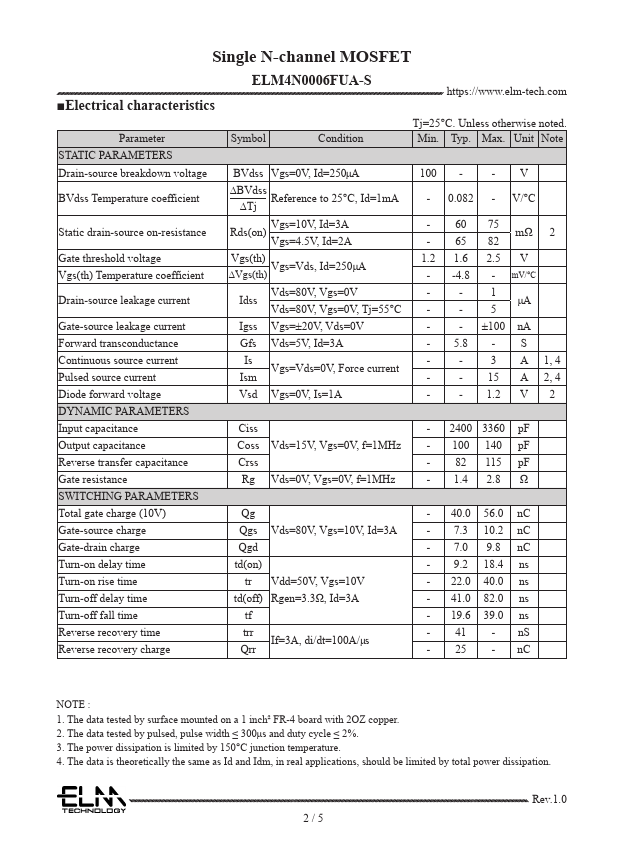

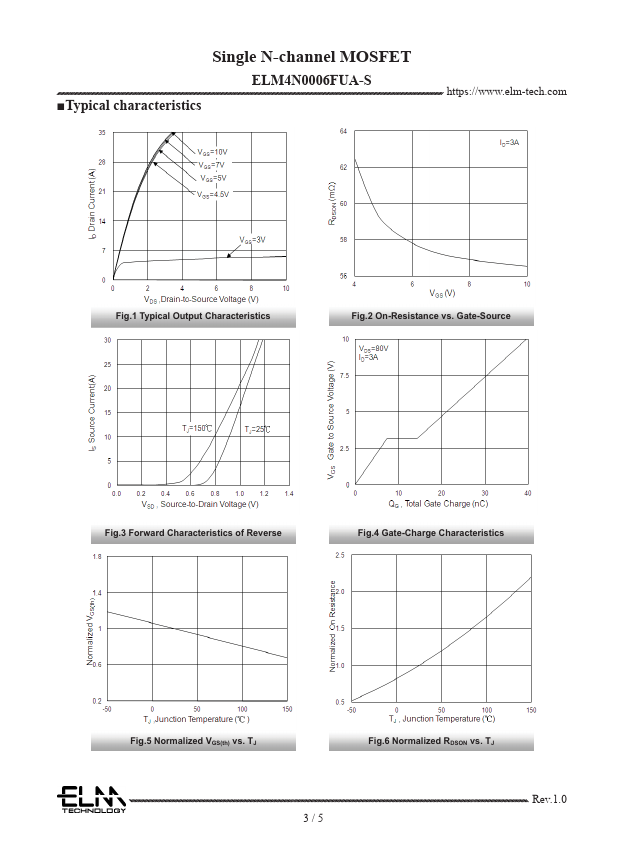

Additional preview pages of the ELM4N0006FUA-S datasheet.

Product details

Description

ELM4N0006FUA-S uses advanced trench technology to provide excellent Rds(on), low gate charge and low gate threshold voltage.

Features

Vds=100V.
Id=3A (Vgs=10V).
Rds(on) = 75mΩ (Vgs=10V).
Rds(on) = 82mΩ (Vgs=4.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current (Vgs=10V) Ta=25°C Ta=70°C Pulsed drain current Total power dissipation Ta=25°C Storage temperature range Operating junction temperature range Symbol Vds Vgs Id Idm Pd Tstg Tj Limit 100 ±20 3.0 2.4 15 2 -55 to 150 -55 to 150 Unit Note V V A 1 A 2 W 3 °C.
