ELM4N8048FDA-N - Single N-channel MOSFET

Product Overview

ELM

📥 Download Datasheet

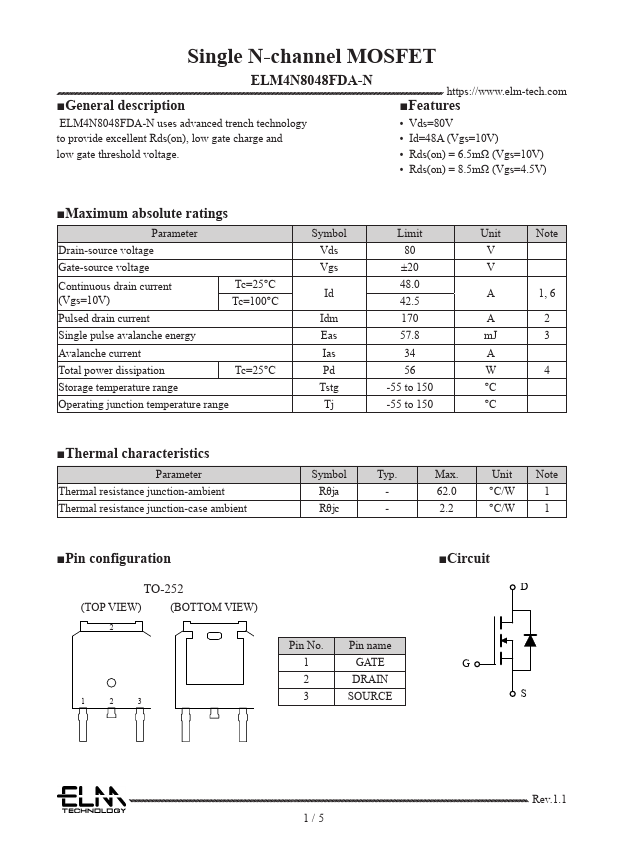

ELM4N8048FDA-N Single N-channel MOSFET by ELM - Datasheet Preview — Datasheet preview – ELM4N8048FDA-N

Datasheet Details

Part number	ELM4N8048FDA-N
Manufacturer	ELM
File Size	1.88 MB
Description	Single N-channel MOSFET
Datasheet	ELM4N8048FDA-N Datasheet

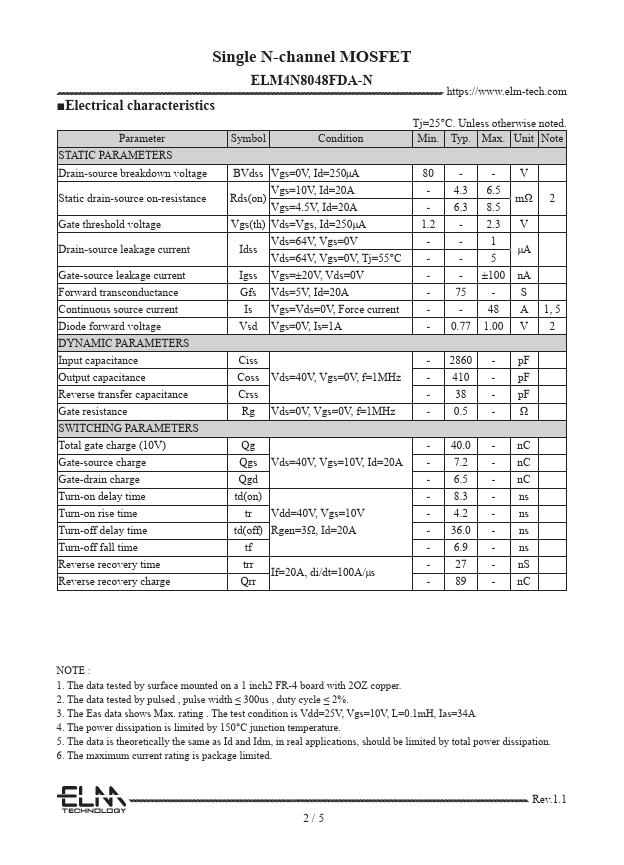

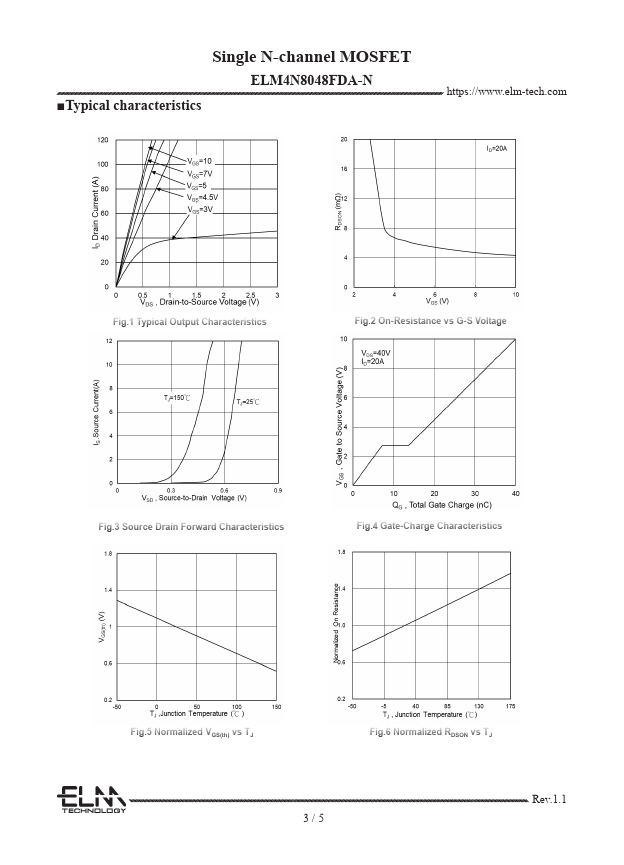

Additional preview pages of the ELM4N8048FDA-N datasheet.

Product details

Description

ELM4N8048FDA-N uses advanced trench technology to provide excellent Rds(on), low gate charge and low gate threshold voltage.

Features

Vds=80V.
Id=48A (Vgs=10V).
Rds(on) = 6.5mΩ (Vgs=10V).
Rds(on) = 8.5mΩ (Vgs=4.5V).
Maximum absolute ratings Parameter Drain-source voltage Gate-source voltage Continuous drain current (Vgs=10V) Tc=25°C Tc=100°C Pulsed drain current Single pulse avalanche energy Avalanche current Total power dissipation Tc=25°C Storage temperature range Operating junction temperature range Symbol Vds Vgs Id Idm Eas Ias Pd Tstg Tj Limit 80 ±20 48.0 42.5 170 5.
