DMS3012SFG - N-Channel MOSFET

Name: DMS3012SFG
SKU: DMS3012SFG-976739

Diodes

📥 Download Datasheet

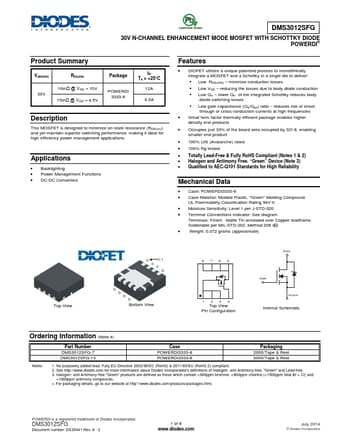

DMS3012SFG Datasheet Preview — Preview of DMS3012SFG PDF

Datasheet Details

Part number	DMS3012SFG
Manufacturer	DIODES
File Size	225.79 KB
Description	N-Channel MOSFET
Datasheet	DMS3012SFG-Diodes.pdf

DMS3012SFG Product details

Description

This MOSFET is designed to minimize on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Backlighting Power Management Functions DC-DC Converters

Features

DIOFET utilizes a unique patented process to monolithically integrate a MOSFET and a Schottky in a single die to deliver:.
Low RDS(ON).
minimize conduction losses.
Low VSD.
reducing the losses due to body diode conduction.
Low Qrr.
lower Qrr of the integrated Schottky reduces body diode switching losses.
Low gate capacitance (Qg/Qgs) ratio.
reduces risk of shoot through or cross conduction currents at high frequencies.
Sm.
