DMS3016SFG - N-CHANNEL ENHANCEMENT MODE MOSFET

Description

This new generation MOSFET has been designed to minimize the onstate resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Features

  • DIOFET utilizes a unique patented process to monolithically integrate a MOSFET and a Schottky in a single die to deliver:.
  • Low RDS(ON).
  • minimize conduction losses.
  • Low VSD.
  • reducing the losses due to body diode conduction.
  • Low Qrr.
  • lower Qrr of the integrated Schottky reduces body diode switching losses.
  • Low gate capacitance (Qg/Qgs) ratio.
  • reduces risk of shoot- through or cross conduction currents at high frequen.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DMS3016SSS N-CHANNEL ENHANCEMENT MODE MOSFET Diodes
DMS3016SSSA N-Channel MOSFET Diodes
DMS3012SFG N-Channel MOSFET Diodes
DMS3017SSD ASYMMETRIC DUAL N-CHANNEL ENHANCEMENT MODE MOSFET Diodes
DMS3019SSD ASYMMETRIC DUAL N-CHANNEL ENHANCEMENT MODE MOSFET Diodes

Other Datasheets by Diodes Incorporated

Part Number Description
DMS3014SFG 30V N-CHANNEL ENHANCEMENT MODE MOSFET
DMS3014SSS N-CHANNEL ENHANCEMENT MODE MOSFET
DMS3015SSS N-CHANNEL ENHANCEMENT MODE MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

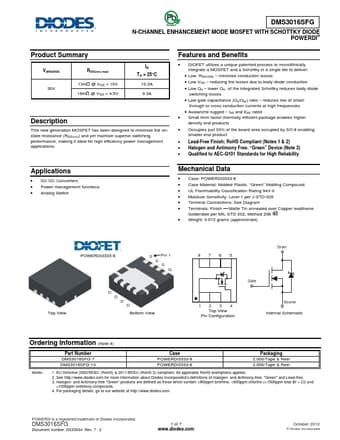

Green DMS3016SFG N-CHANNEL ENHANCEMENT MODE MOSFET WITH SCHOTTKY DIODE POWERDI® Product Summary V(BR)DSS 30V RDS(on) max 13mΩ @ VGS = 10V 16mΩ @ VGS = 4.5V ID TA = 25°C 10.2A 9.3A Description This new generation MOSFET has been designed to minimize the onstate resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
