DDTA113ZUA - PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Product Overview

Diodes

Part number	DDTA113ZUA
Manufacturer	DIODES
File Size	87.84 KB
Description	PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Datasheet	DDTA113ZUA Datasheet

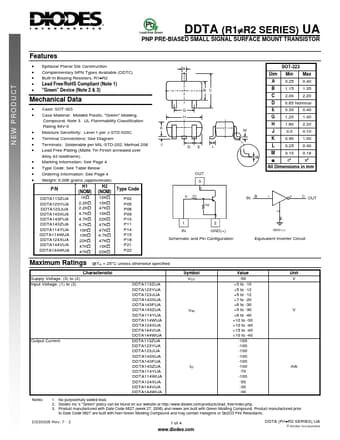

Additional preview pages of the DDTA113ZUA datasheet.

Epitaxial Planar Die Construction.
Complementary NPN Types Available (DDTC).
Built-In Biasing Resistors, R1≠R2.
Lead Free/RoHS Compliant (Note 1).
"Green" Device (Note 2 & 3) Mechanical Data.
Case: SOT-323.
Case Material: Molded Plastic, "Green" Molding Compound, Note 3. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020C.
Terminal Connections: See Diagram.
Ter.
