DDTA113ZE - PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Product Overview

Diodes

Part number	DDTA113ZE
Manufacturer	DIODES
File Size	329.16 KB
Description	PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Datasheet	DDTA113ZE Datasheet

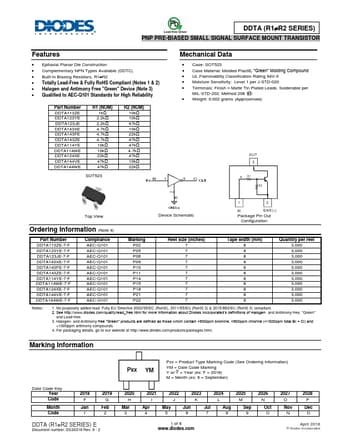

Additional preview pages of the DDTA113ZE datasheet.

Epitaxial Planar Die Construction.
Complementary NPN Types Available (DDTC).
Built-In Biasing Resistors, R1R2.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free "Green" Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability Part Number DDTA113ZE DDTA123YE DDTA123JE DDTA143XE DDTA143FE DDTA143ZE DDTA114YE DDTA114WE DDTA124XE DDTA144VE DDTA144WE R1 (NOM) 1kΩ 2.2kΩ 2.2kΩ 4.7kΩ 4.7kΩ 4.7kΩ 10kΩ 10kΩ 22kΩ 47kΩ 47kΩ SOT5.
