DDTA113ZKA - PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Product Overview

Diodes

Part number	DDTA113ZKA
Manufacturer	DIODES
File Size	86.60 KB
Description	PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Datasheet	DDTA113ZKA Datasheet

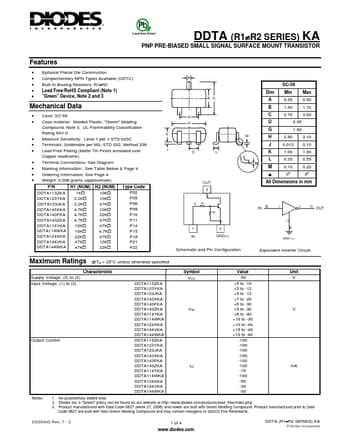

Additional preview pages of the DDTA113ZKA datasheet.

Epitaxial Planar Die Construction.
Complementary NPN Types Available (DDTC).
Built-In Biasing Resistors, R1≠R2.
Lead Free/RoHS Compliant (Note 1).
"Green" Device, Note 2 and 3 Mechanical Data.
Case: SC-59.
Case material: Molded Plastic, "Green" Molding Compound, Note 3. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020C.
Terminals: Solderable per MIL-STD-202, Method 208.
