DDTA113ZCA - PNP PRE-BIASED SMALL SIGNAL SOT-23 SURFACE MOUNT TRANSISTOR

Product Overview

Diodes

Part number	DDTA113ZCA
Manufacturer	DIODES
File Size	86.67 KB
Description	PNP PRE-BIASED SMALL SIGNAL SOT-23 SURFACE MOUNT TRANSISTOR
Datasheet	DDTA113ZCA Datasheet

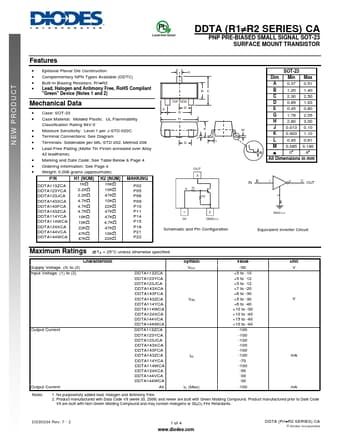

Additional preview pages of the DDTA113ZCA datasheet.

Epitaxial Planar Die Construction.
Complementary NPN Types Available (DDTC).
Built-In Biasing Resistors, R1≠R2.
Lead, Halogen and Antimony Free, RoHS Compliant "Green" Device (Notes 1 and 2) Mechanical Data.
Case: SOT-23.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020C.
Terminal Connections: See Diagram.
Terminals: Solderable per MIL-STD-20.
