DDTA113TUA - PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Product Overview

Diodes

Part number	DDTA113TUA
Manufacturer	DIODES
File Size	85.75 KB
Description	PNP PRE-BIASED SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Datasheet	DDTA113TUA Datasheet

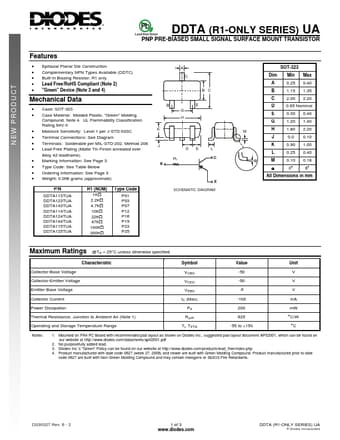

Additional preview pages of the DDTA113TUA datasheet.

Epitaxial Planar Die Construction.
Complementary NPN Types Available (DDTC).
Built-In Biasing Resistor, R1 only.
Lead Free/RoHS Compliant (Note 2).
"Green" Device (Note 3 and 4) Mechanical Data.
Case: SOT-323.
Case Material: Molded Plastic, "Green" Molding Compound, Note 4. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020C.
Terminal Connections: See Diagram.
Termina.
