AP3417C 1.5MHZ SYNCHRONOUS STEP-DOWN DC-DC CONVERTER

AP3417C Description

NEW PRODUCT AP3417C 1.5MHz SYNCHRONOUS STEP-DOWN DC-DC CONVERTER .
The AP3417C is a high efficiency step-down DC-DC voltage converter.

AP3417C Applications

* The device is available in adjustable output voltage version ranging from 0.6V to 0.9×VIN when input voltage range is from 2.5V to 5.5V, and is able to deliver up to 1A. The AP3417C is available in SOT-23-5 and W-DFN2020-6 (Type US) packages. Pin Assignments (Top View) EN 1 GND 2 LX 3 5 FB 4 VI

📥 Download Datasheet

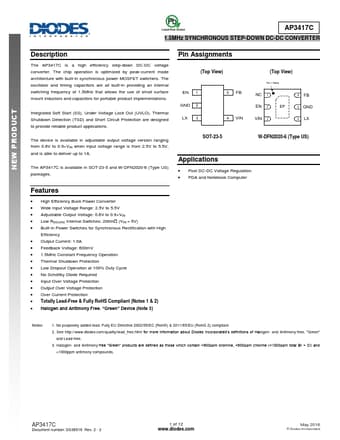

Preview of AP3417C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP3417C
Manufacturer
DIODES ↗
File Size
580.23 KB
Datasheet
AP3417C-Diodes.pdf
Description
1.5MHZ SYNCHRONOUS STEP-DOWN DC-DC CONVERTER
