DMP3035LSS - P-Channel MOSFET

Diodes Incorporated

The DMP3035LSS by Diodes Incorporated is a P-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

DMP3035LSS P-Channel MOSFET by Diodes Incorporated - Datasheet Preview — Official preview page of the **DMP3035LSS** P-Channel MOSFET datasheet (Diodes Incorporated).

Datasheet Details

Part number	DMP3035LSS
Manufacturer	DIODES Incorporated
File Size	641.90 KB
Description	P-Channel MOSFET
Datasheet	DMP3035LSS_DiodesIncorporated.pdf

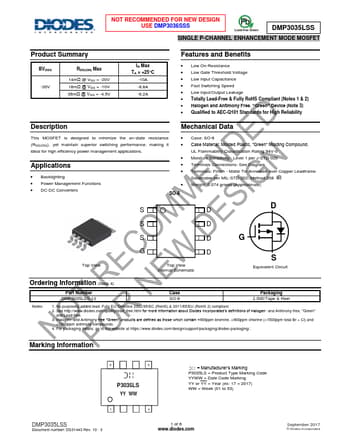

Additional preview pages of the DMP3035LSS datasheet.

DMP3035LSS Product details

Description

Mechanical Data This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications. Applications Backlighting Power Management Functions DC-DC Converters SO-8 Case: SO-8 Case Material: Molded Plastic, “Green” Molding Compound.UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Te

Features

Low On-Resistance.
Low Gate Threshold Voltage.
Low Input Capacitance.
Fast Switching Speed.
Low Input/Output Leakage.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
