DMP3035SFG - P-Channel MOSFET

Diodes

The DMP3035SFG by Diodes is a P-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

DMP3035SFG P-Channel MOSFET by Diodes - Datasheet Preview — Official preview page of the **DMP3035SFG** P-Channel MOSFET datasheet (Diodes).

Datasheet Details

Part number	DMP3035SFG
Manufacturer	DIODES
File Size	168.39 KB
Description	P-Channel MOSFET
Datasheet	DMP3035SFG-Diodes.pdf

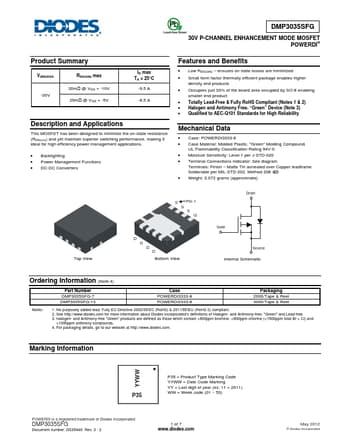

Additional preview pages of the DMP3035SFG datasheet.

DMP3035SFG Product details

Description

and Applications This MOSFET has been designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Backlighting Power Management Functions DC-DC Converters

Features

Low RDS(ON).
ensures on state losses are minimized.
Small form factor thermally efficient package enables higher density end products.
Occupies just 33% of the board area occupied by SO-8 enabling smaller end product.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
Case: POWERDI3333-8.
C.
