DMP3036SSD - P-Channel MOSFET

Diodes

The DMP3036SSD by Diodes is a P-Channel MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

DMP3036SSD P-Channel MOSFET by Diodes - Datasheet Preview — Official preview page of the **DMP3036SSD** P-Channel MOSFET datasheet (Diodes).

Datasheet Details

Part number	DMP3036SSD
Manufacturer	DIODES
File Size	364.02 KB
Description	P-Channel MOSFET
Datasheet	DMP3036SSD-Diodes.pdf

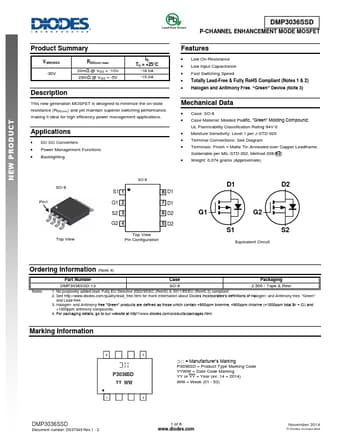

Additional preview pages of the DMP3036SSD datasheet.

DMP3036SSD Product details

Description

This new generation MOSFET is designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. DC-DC Converters Power Management Functions Backlighting DMP3036SSD P-CHANNEL ENHANCEMENT MODE MOSFET

Features

Low On-Resistance.
Low Input Capacitance.
Fast Switching Speed.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data.
Case: SO-8.
Case Material: Molded Plastic, “Green” Molding Compound; UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020.
Terminal Connections: See Diagram.
Terminals: Finish.
Matte Tin Annealed over Copper Leadfram.
