DMP3020LSS - single P-Channel MOSFET

Diodes Incorporated

📥 Download Datasheet

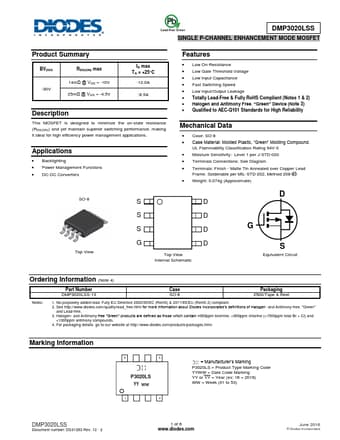

DMP3020LSS Datasheet Preview — Preview of DMP3020LSS PDF

Datasheet Details

Part number	DMP3020LSS
Manufacturer	DIODES Incorporated
File Size	415.10 KB
Description	single P-Channel MOSFET
Datasheet	DMP3020LSS_DiodesIncorporated.pdf

DMP3020LSS Product details

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Backlighting Power Management Functions DC-DC Converters

Features

Low On-Resistance.
Low Gate Threshold Voltage.
Low Input Capacitance.
Fast Switching Speed.
Low Input/Output Leakage.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
Case: SO-8.
Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per.
