DMP3025LK3 - MOSFET

Diodes

📥 Download Datasheet

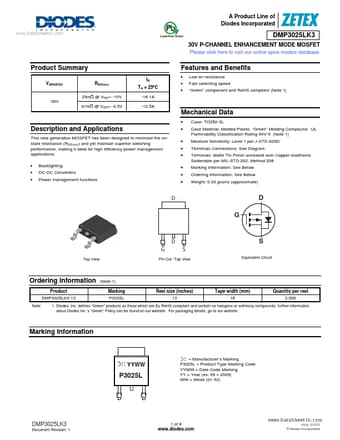

DMP3025LK3 Datasheet Preview — Preview of DMP3025LK3 PDF

Datasheet Details

Part number	DMP3025LK3
Manufacturer	DIODES
File Size	708.33 KB
Description	MOSFET
Datasheet	DMP3025LK3_Diodes.pdf

DMP3025LK3 Product details

Description

and Applications This new generation MOSFET has been designed to minimize the onstate resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Backlighting DC-DC Converters Power management functions D D G D G Top View S S Equivalent Circuit Pin Out -Top View Ordering Information Product DMP3025LK3-13 Note: (N

Features

Low on-resistance Fast switching speed “Green” component and RoHS compliant (Note 1) Mechanical Data.
Case: TO252-3L Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 (Note 1) Moisture Sensitivity: Level 1 per J-STD-020D Terminals Connections: See Diagram Terminals: Matte Tin Finish annealed over Copper leadframe. Solderable per MIL-STD-202, Method 208 Marking Information: See Below Ordering Information:.
