DS232A - Dual RS-232 Transmitter/Receiver

Dallas Semiconducotr

📥 Download Datasheet

DS232A Datasheet Preview — Preview of DS232A PDF

Datasheet Details

Part number	DS232A
Manufacturer	Dallas Semiconducotr
File Size	110.12 KB
Description	Dual RS-232 Transmitter/Receiver
Datasheet	DS232A_DallasSemiconducotr.pdf

DS232A Product details

Description

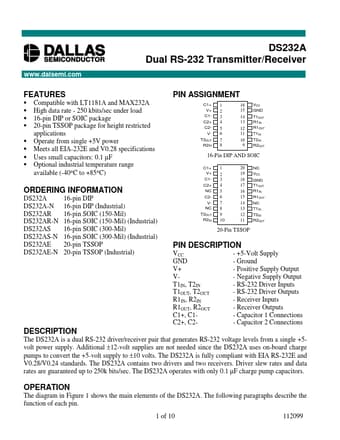

VCC GND V+ VT1IN, T2IN T1OUT, T2OUT R1IN, R2IN R1OUT, R2OUT C1+, C1C2+, C2- +5-Volt Supply - Ground - Positive Supply Output - Negative Supply Output - RS-232 Driver Inputs - RS-232 Driver Outputs - Receiver Inputs - Receiver Outputs - Capacitor 1 Connections - Capacitor 2 Connections DESCRIPTION The DS232A is a dual RS-232 driver/receiver pair that generates RS-232 voltage levels from a single +5volt power supply.Additional ±12-volt supplies are not needed since the DS232A uses on-board charg

Features

Compatible with LT1181A and MAX232A High data rate - 250 kbits/sec under load 16-pin DIP or SOIC package 20-pin TSSOP package for height restricted.
