DS2-12A, DS2-08A, Rectifier Diode

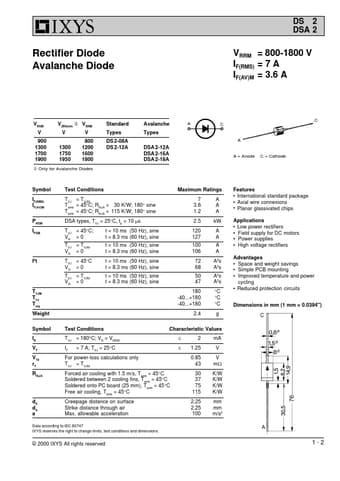

Rectifier Diode Avalanche Diode DS 2 DSA 2 VRRM = 800-1800 V IF(RMS) = 7 A IF(AV)M = 3.6 A VRSM V V x(BR)minÿ VRRM VV 900 1300 1700 1900 1300 1750 1950 800 1200 1600 1800 x Only for Avalanche Diodes Standard Types DS 2-08A DS 2-12A Avalanche Types DSA 2-12A DSA 2-16A DSA 2-18A A C A A = Anode C = Cathode C Symbol I F(RMS) IF(AV)M PRSM IFSM I2t TVJM TVJ Tstg Weight Test Conditions T =T VJ VJM Tamb = 45°C; RthJA = 30 K/W; 180° sine Tamb = 45°C; RthJA = 115 K/W; 180° sine DSA types,

DS2-12A Features

* q International standard package q Axial wire connexions q Planar glassivated chips Applications q Low power rectifiers q Field supply for DC motors q Power supplies q High voltage rectifiers Advantages q Space and weight savings q Simple PCB mounting q Improved temperature and power cycling q Reduc
