2A01 - 2.0A RECTIFIER

DIODES

The 2A01 by DIODES is a 2.0A RECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

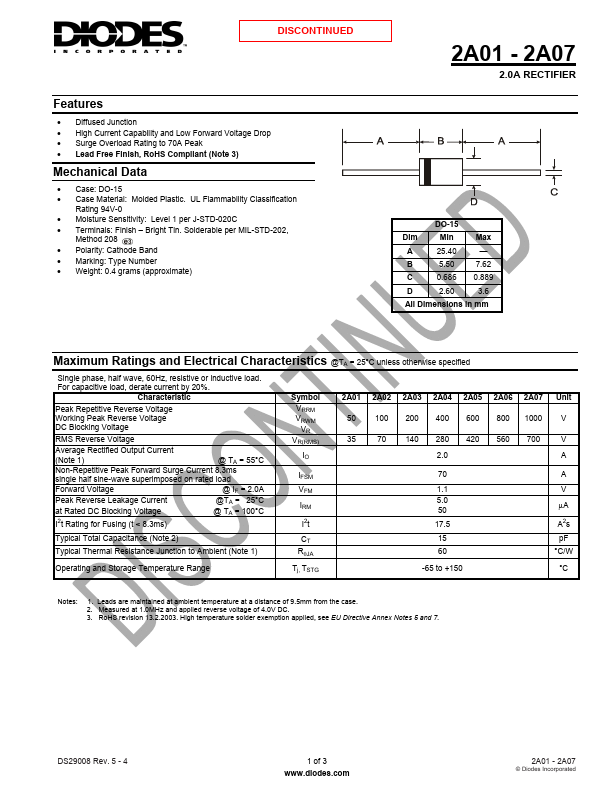

2A01 2.0A RECTIFIER by DIODES - Datasheet Preview — Official preview page of the 2A01 2.0A RECTIFIER datasheet (DIODES).

Datasheet Details

Part number	2A01
Manufacturer	DIODES
File Size	123.44 KB
Description	2.0A RECTIFIER
Datasheet	2A01-DIODES.pdf

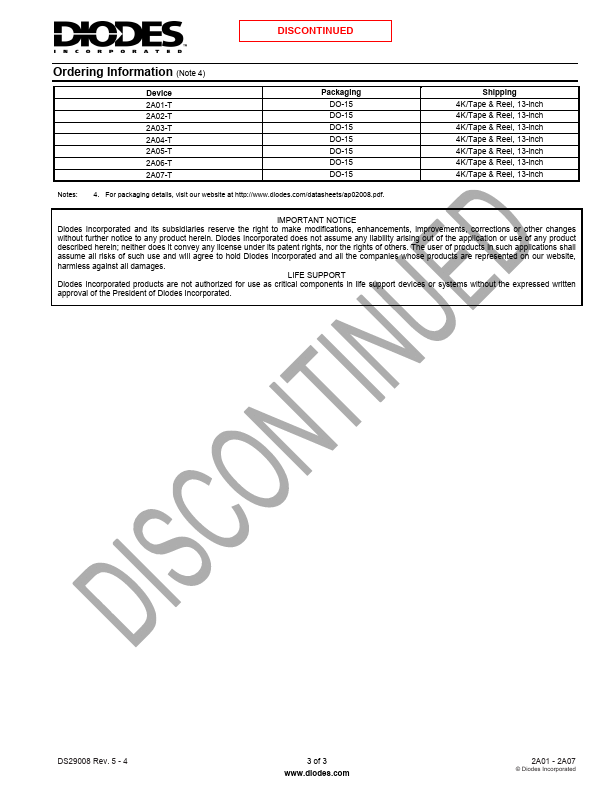

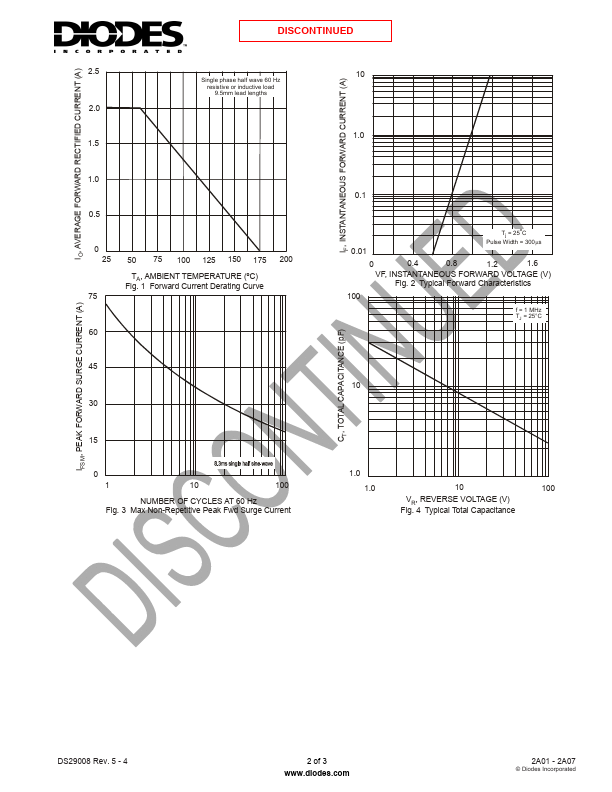

Additional preview pages of the 2A01 datasheet.

2A01 Product details

Features

Diffused Junction.
High Current Capability and Low Forward Voltage Drop.
Surge Overload Rating to 70A Peak.
Lead Free Finish, RoHS Compliant (Note 3) Mechanical Data.
Case: DO-15.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020C.
Terminals: Finish.
Bright Tin. Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Mar.
