2A01G-T 2A Glass Passivated Rectifier

2A01G-T Description

4 2A01G-T - 2A07G-T Taiwan Semiconductor 2A, 50V - 1000V Glass Passivated Rectifier .
Green compound 2 Version:A1703 4 CHARACTERISTICS CURVES (TA = 25°C unless otherwise noted) Fig.

2A01G-T Features

* Glass passivated chip junction
* High efficiency, Low VF
* High current capability
* High surge current capability
* Low power loss
* Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC

2A01G-T Applications

* Switching mode power supply (SMPS)
* Adapters
* TV
* Monitor KEY PARAMETERS PARAMETER VALUE UNIT IF(AV) VRRM IFSM TJ MAX Package 2 A 50 - 1000 V 70 A 150 °C DO-204AC (DO-15) Configuration Single die MECHANICAL DATA
* Case: DO-204AC (DO-15)
* Molding compoun

📥 Download Datasheet

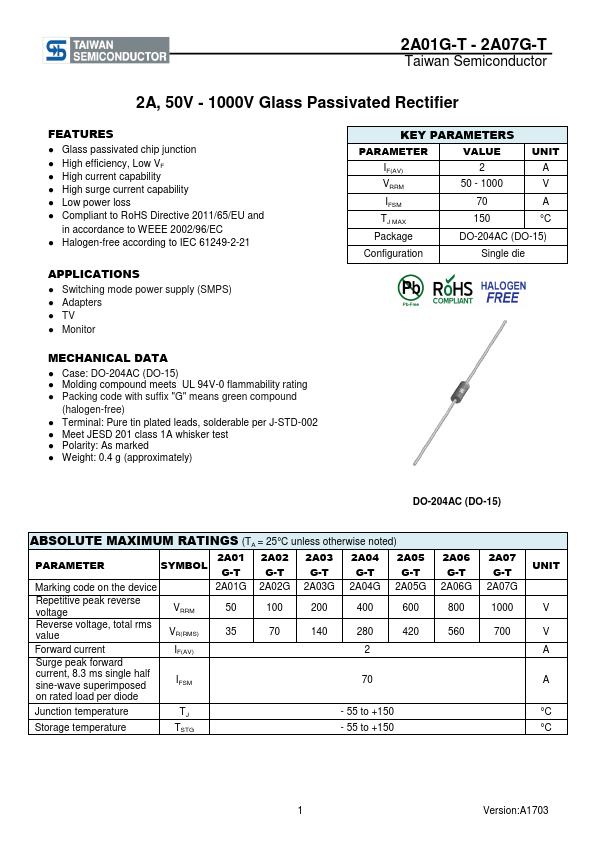

Preview of 2A01G-T PDF

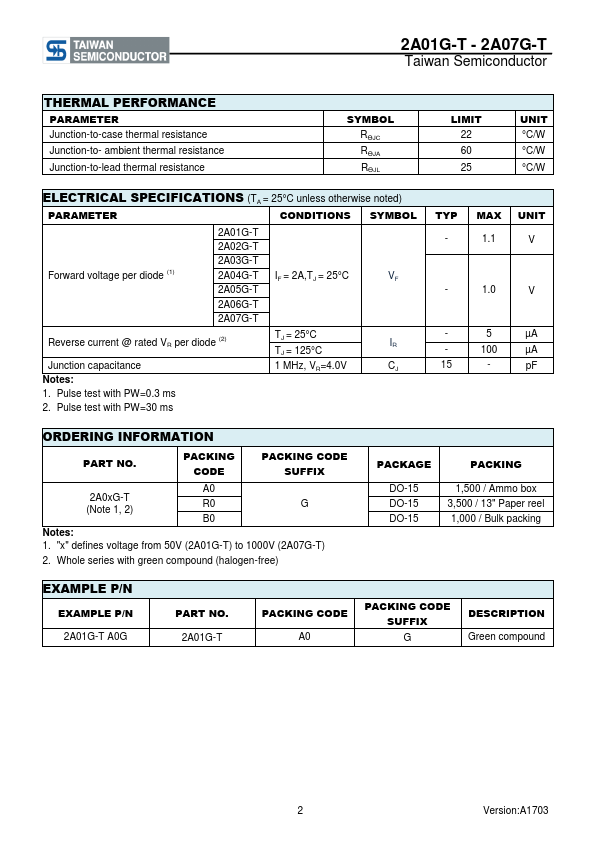

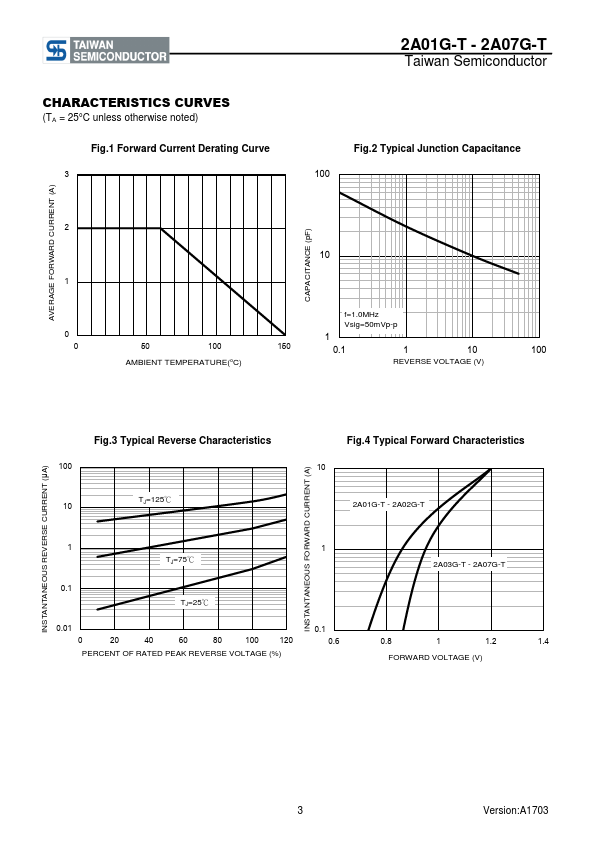

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2A01G-T
Manufacturer
Taiwan Semiconductor
File Size
255.42 KB
Datasheet
2A01G-T-TaiwanSemiconductor.pdf
Description
2A Glass Passivated Rectifier
