2A02G, 2A01G Datasheet - Taiwan Semiconductor

2A02G Glass Passivated Rectifiers

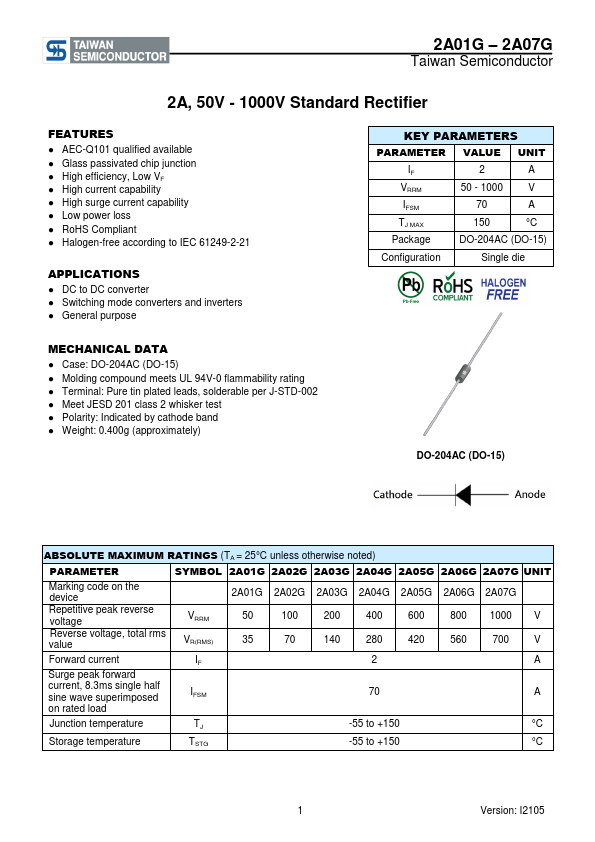

G Green compound AEC-Q101 qualified RATINGS AND CHARACTERISTICS CURVES (TA=25℃ unless otherwise noted) AVERAGE FORWARD CURRENT(A) 2.5 2 1.5 1 0.5 0 0 FIG.1 MAXMUM FORWARD CURRENT DERATING CURVE 50 100 AMBIENT TEMPERATURE(oC) 150 PEAK FORWARD SURGE CURRENT(A) FIG. 2 MAXIMUM FORWARD SURGE CURR.

2A02G Features

* - Glass passivated chip junction - High efficiency, Low VF - High current capability - High surge current capability - Low power loss - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition MECHANICAL DATA Case: DO-204AC (D

2A01G-TaiwanSemiconductor.pdf

This datasheet PDF includes multiple part numbers: 2A02G, 2A01G. Please refer to the document for exact specifications by model.

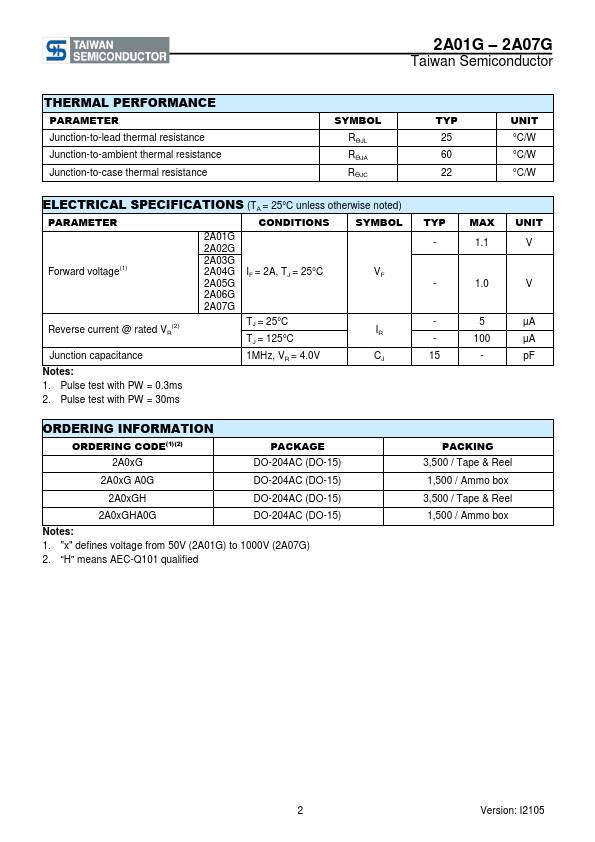

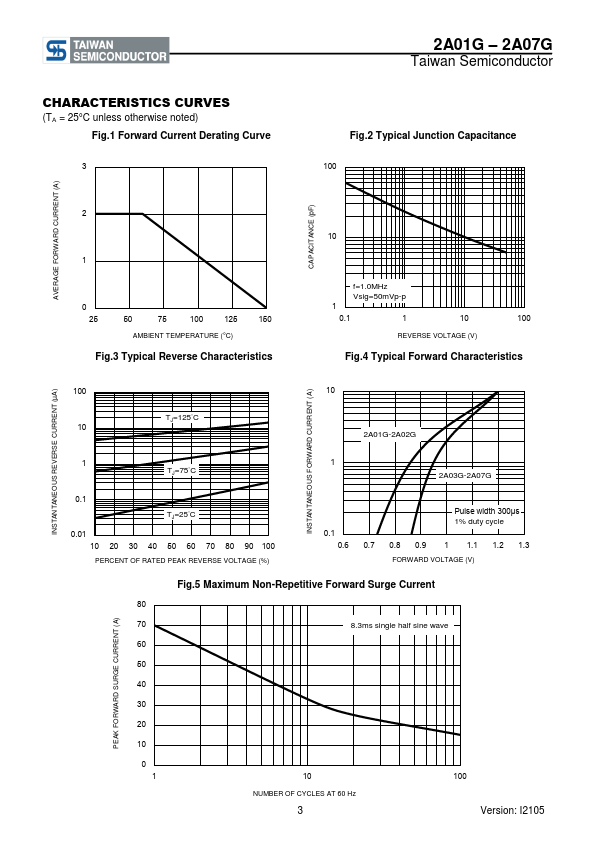

2A02G Datasheet Preview Page 2 2A02G Datasheet Preview Page 3

Datasheet Details

Part number:

2A02G, 2A01G

Manufacturer:

Taiwan Semiconductor

File Size:

192.71 KB

Description:

Glass passivated rectifiers.

Note:

This datasheet PDF includes multiple part numbers: 2A02G, 2A01G.
Please refer to the document for exact specifications by model.
