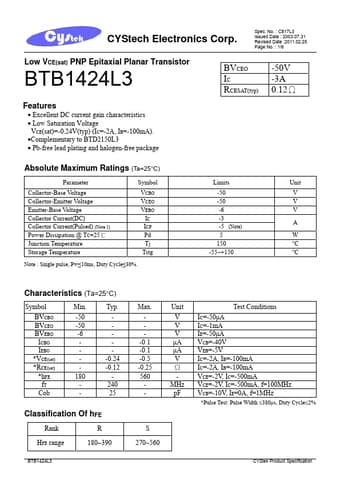

BTB1424L3 - Low VCE(sat) PNP Epitaxial Planar Transistor

Cystech Electonics

Datasheet Details

Part number	BTB1424L3
Manufacturer	Cystech Electonics
File Size	209.50 KB
Description	Low VCE(sat) PNP Epitaxial Planar Transistor
Datasheet	BTB1424L3_CystechElectonics.pdf

Excellent DC current gain characteristics.
Low Saturation Voltage VCE(sat)=-0.4V(typ) (IC=-2A, IB=-100mA).
Complementary to BTD2150L3 Absolute Maximum Ratings (Ta=25°C) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current(DC) Collector Current(Pulsed) (Note 1) Power Dissipation @ TC=25℃ Junction Temperature Storage Temperature Note : Single pulse, Pw≤10ms, Duty Cycle≤30%. Symbol VCBO VCEO VEBO IC ICP Pd Tj Tstg Limits -5.
