BTB1424AD3 - Low VCE(sat) PNP Epitaxial Planar Transistor

Cystech Electonics

Datasheet Details

Part number	BTB1424AD3
Manufacturer	Cystech Electonics
File Size	201.70 KB
Description	Low VCE(sat) PNP Epitaxial Planar Transistor
Datasheet	BTB1424AD3_CystechElectonics.pdf

Excellent DC current gain characteristics.
Low Saturation Voltage, VCE(sat)=-0.3V(typ) @IC=-2A, IB=-100mA.
Complementary to BTD2150AD3.

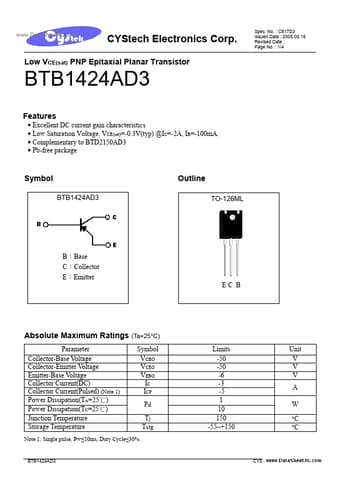

Pb-free package Symbol BTB1424AD3 Outline TO-126ML B：Base C：Collector E：Emitter EC B Absolute Maximum Ratings (Ta=25°C) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current(DC) Collector Current(Pulsed) (Note 1) Power Dissipation(TA=25℃) Power Dissipation(TC=25℃) Junction Temp.
