BTB1424AM3 - Low VCE(sat) PNP Epitaxial Planar Transistor

Cystech Electonics

Datasheet Details

Part number	BTB1424AM3
Manufacturer	Cystech Electonics
File Size	302.17 KB
Description	Low VCE(sat) PNP Epitaxial Planar Transistor
Datasheet	BTB1424AM3_CystechElectonics.pdf

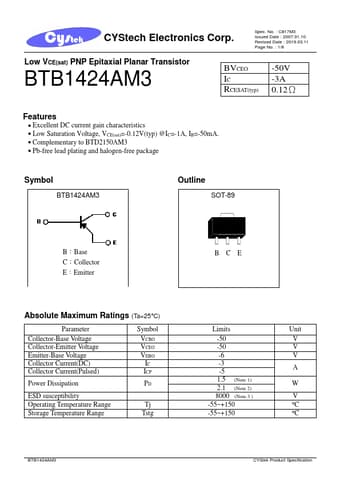

Excellent DC current gain characteristics.
Low Saturation Voltage, VCE(sat)=-0.3V(typ) @IC=-2A, IB=-100mA.
Complementary to BTD2150AM3.
Pb-free package Symbol BTB1424AM3 Outline SOT-89 B：Base C：Collector E：Emitter B C E Absolute Maximum Ratings (Ta=25°C) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current(DC) Collector Current(Pulsed) (Note 1) Power Dissipation Junction Temperature Storage Temperature Symbol.
