CY7C1371S - 18-Mbit (512K x 36) Flow-Through SRAM

Description

The CY7C1371S is a 3.3 V, 512K × 36 Synchronous flow through Burst SRAM designed specifically to support unlimited true back-to-back Read/Write operations with no wait state insertion.

Features

  • No Bus Latency (NoBL) architecture eliminates dead cycles between write and read cycles.
  • Supports up to 133-MHz bus operations with zero wait states.
  • Data is transferred on every clock.
  • Pin-compatible and functionally equivalent to ZBT™ devices.
  • Internally self-timed output buffer control to eliminate the need to use OE.
  • Registered inputs for flow through operation.
  • Byte Write capability.
  • 3.3 V/2.5 V I/O power supply (VDDQ).
  • Fast clock-to-output ti.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CY7C1371B (CY7C1371B / CY7C1373B) 512K x 36/1M x 18 Flow-Thru SRAM Cypress Semiconductor
CY7C1371D 18-Mbit (512 K x 36/1 M x 18) Flow-Through SRAM Cypress Semiconductor
CY7C1371DV25 (CY7C1371DV25 / CY7C1373DV25) Flow-Through SRAM Cypress Semiconductor
CY7C1371KV33 18-Mbit (512K x 36/1M x 18) Flow-Through SRAM Cypress Semiconductor
CY7C1371KVE33 18-Mbit (512K x 36/1M x 18) Flow-Through SRAM Cypress Semiconductor

Other Datasheets by Cypress (Infineon)

Part Number Description
CY7C1371C 18-Mbit (512K x 36/1M x 18) Flow-Through SRAM with NoBL Architecture
CY7C1370C 512K x 36/1M x 18 Pipelined SRAM with NoBL Architecture
CY7C1370CV25 512K x 36/1M x 18 Pipelined SRAM with NoBL Architecture
CY7C1370D 18-Mbit (512 K 횞 36/1 M 횞 18) Pipelined SRAM
CY7C1372C 512K x 36/1M x 18 Pipelined SRAM with NoBL Architecture

Full PDF Text Transcription

Click to expand full text

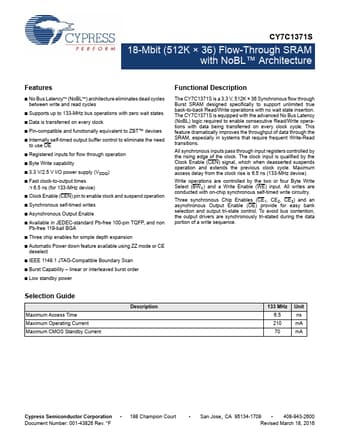

CY7C1371S 18-Mbit (512K × 36) Flow-Through SRAM with NoBL™ Architecture 18-Mbit (512K × 36) Flow-Through SRAM with NoBL™ Architecture Features ■ No Bus Latency (NoBL) architecture eliminates dead cycles between write and read cycles ■ Supports up to 133-MHz bus operations with zero wait states ■ Data is transferred on every clock ■ Pin-compatible and functionally equivalent to ZBT™ devices ■ Internally self-timed output buffer control to eliminate the need to use OE ■ Registered inputs for flow through operation ■ Byte Write capability ■ 3.3 V/2.5 V I/O power supply (VDDQ) ■ Fast clock-to-output times ❐ 6.
