CY7C1522V18 - 72-Mbit DDR-II SIO SRAM 2-Word Burst Architecture

Name: CY7C1522V18
SKU: CY7C1522V18-695724

Cypress Semiconductor

📥 Download Datasheet

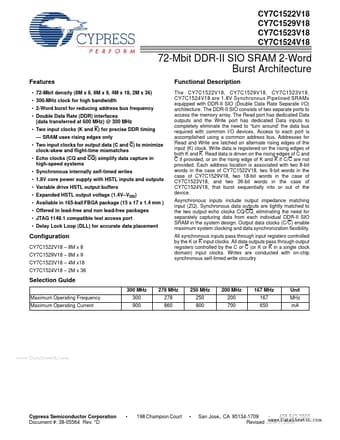

CY7C1522V18 Datasheet Preview — Preview of CY7C1522V18 PDF

Datasheet Details

Part number	CY7C1522V18
Manufacturer	Cypress Semiconductor
File Size	491.53 KB
Description	72-Mbit DDR-II SIO SRAM 2-Word Burst Architecture
Datasheet	CY7C1522V18_CypressSemiconductor.pdf

CY7C1522V18 Product details

Description

The CY7C1522V18, CY7C1529V18, CY7C1523V18, CY7C1524V18 are 1.8V Synchronous Pipelined SRAMs equipped with DDR-II SIO (Double Data Rate Separate I/O) architecture.

Features

72-Mbit density (8M x 8, 8M x 9, 4M x 18, 2M x 36).
300-MHz clock for high bandwidth.
2-Word burst for reducing address bus frequency.
Double Data Rate (DDR) interfaces (data transferred at 600 MHz) @ 300 MHz.
Two input clocks (K and K) for precise DDR timing.
SRAM uses rising edges only.
Two input clocks for output data (C and C) to minimize clock-skew and flight-time mismatches.
Echo clocks (CQ and CQ) simplify data captu.
