CY7C1483V33, CY7C1481V33 - (CY7C1481V33 / CY7C1483V33 / CY7C1487V33) 2M x 36/4M x 18/1M x 72 Flow-Through SRAM

Cypress Semiconductor

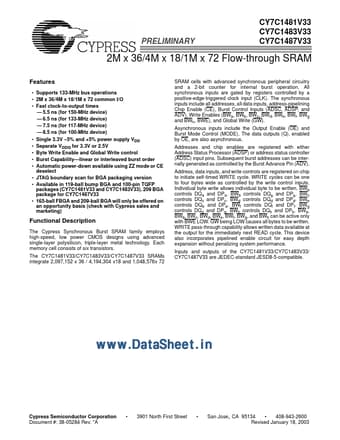

CY7C1483V33 Datasheet Preview — This datasheet PDF includes multiple part numbers: CY7C1483V33, CY7C1481V33. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CY7C1483V33, CY7C1481V33
Manufacturer	Cypress Semiconductor
File Size	612.36 KB
Description	(CY7C1481V33 / CY7C1483V33 / CY7C1487V33) 2M x 36/4M x 18/1M x 72 Flow-Through SRAM
Datasheet	CY7C1481V33_CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CY7C1483V33, CY7C1481V33. Please refer to the document for exact specifications by model.

CY7C1483V33 Product details

Description

The Cypress Synchronous Burst SRAM family employs high-speed, low power CMOS designs using advanced single-layer polysilicon, triple-layer metal technology. A 3901 North First Street San Jose, CA 95134 408-943-2600 Revised January 18, 2003 PRELIMIN

Features

Supports 133-MHz bus operations.
2M x 36/4M x 18/1M x 72 common I/O.
Fast clock-to-output times.
5.5 ns (for 150-MHz device).
6.5 ns (for 133-MHz device).
7.5 ns (for 117-MHz device).
8.5 ns (for 100-MHz device).
Single 3.3V.
5% and +5% power supply VDD.
Separate VDDQ for 3.3V or 2.5V.
Byte Write Enable and Global Write control.
Burst Capability.
linear or interleaved burst order.
